Toyo Keiki MT-3-3 Multiple Transducer 0-150vac 55-65hz 0-500mv Output Voltage

Brand: Toyo Keiki Co., Ltd.
Model: Mt-3-3
Mpn: Mt-3-3 (Also Marked As Mt-3-3-1)
Controller Platform: Marine Power Management And Industrial Automation
Type: Multiple Transducer (Voltage And Frequency)
Country Of Origin: Japan
Serial Number: Eho27578

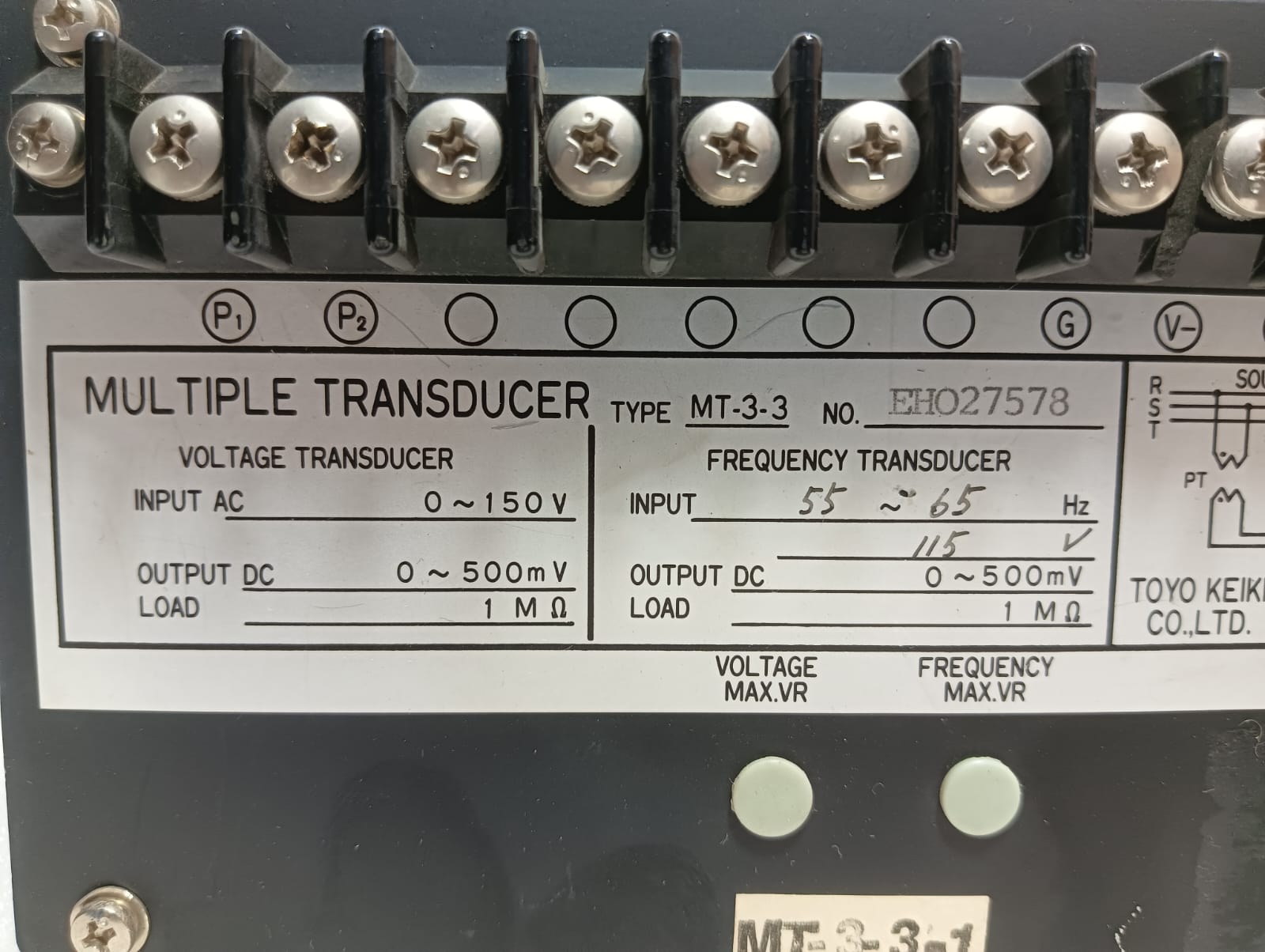

Voltage Transducer Input: 0 ~ 150 V Ac
Voltage Transducer Output: 0 ~ 500 Mv Dc
Frequency Transducer Input: 55 ~ 65 Hz (At 115v)
Frequency Transducer Output: 0 ~ 500 Mv Dc
Load Impedance: 1 Mω (For Both Channels)
Adjustment Points: Voltage Max.Vr / Frequency Max.Vr

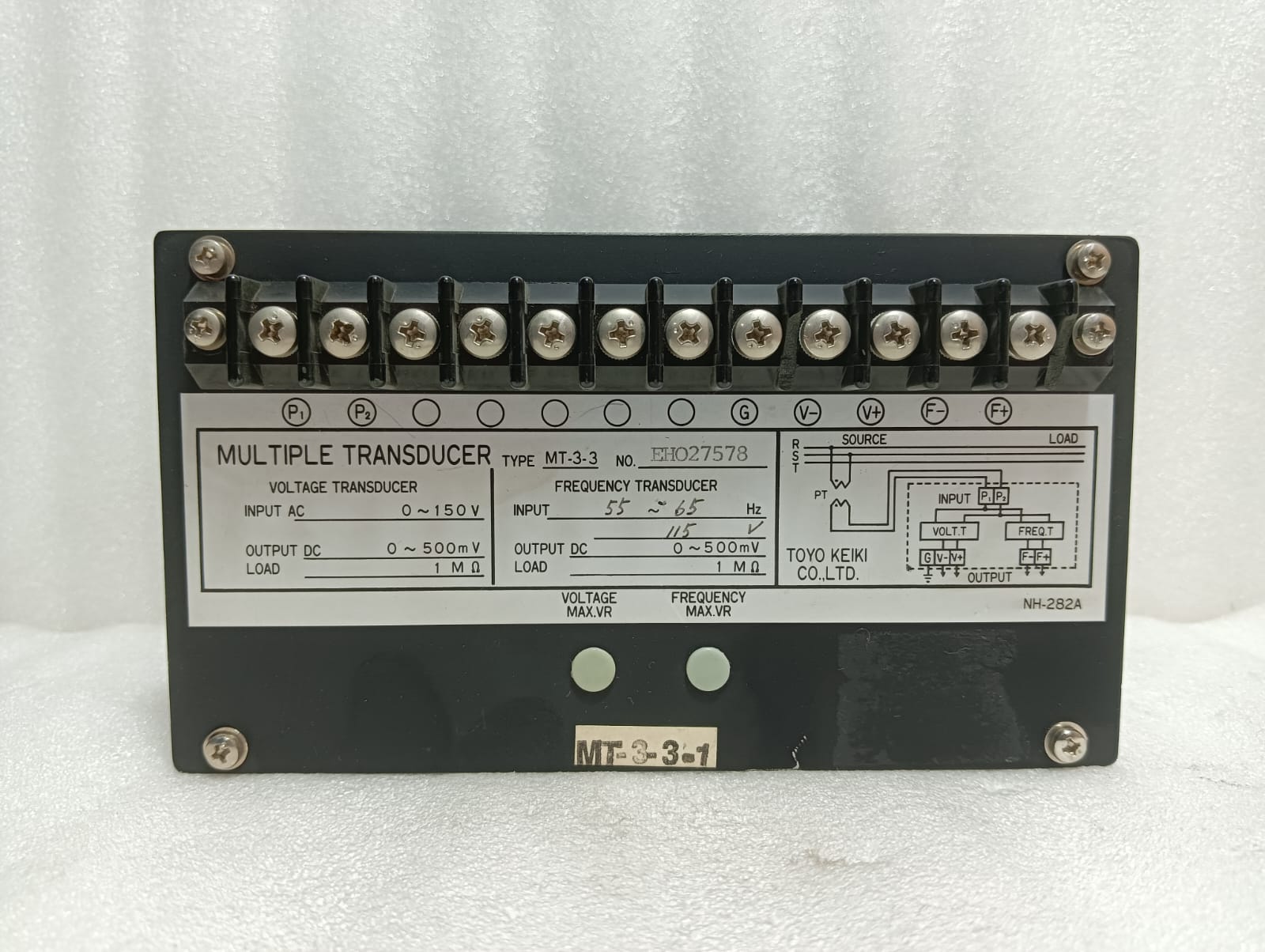

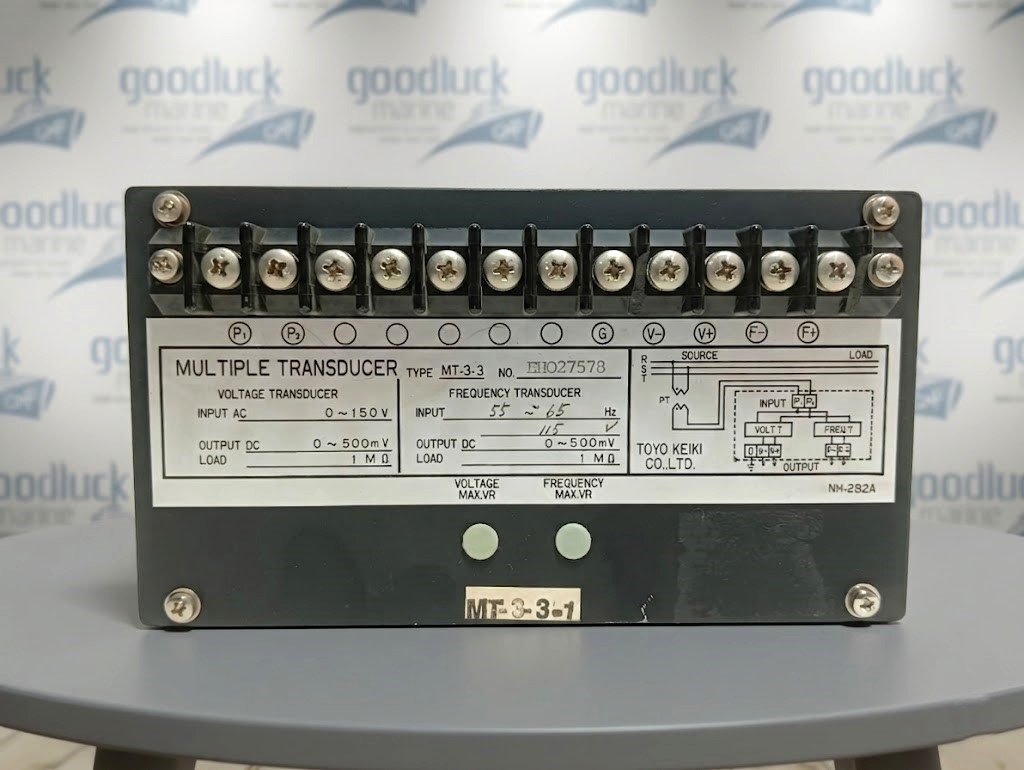

Terminal Layout: P1-P2 (Input), G (Ground), V-/V+ (Volt Output), F-/F+ (Freq Output)
Features: Integrated Wiring Schematic On Faceplate, Robust Screw-Terminal Block, High-Precision Analog Signal Conversion.
