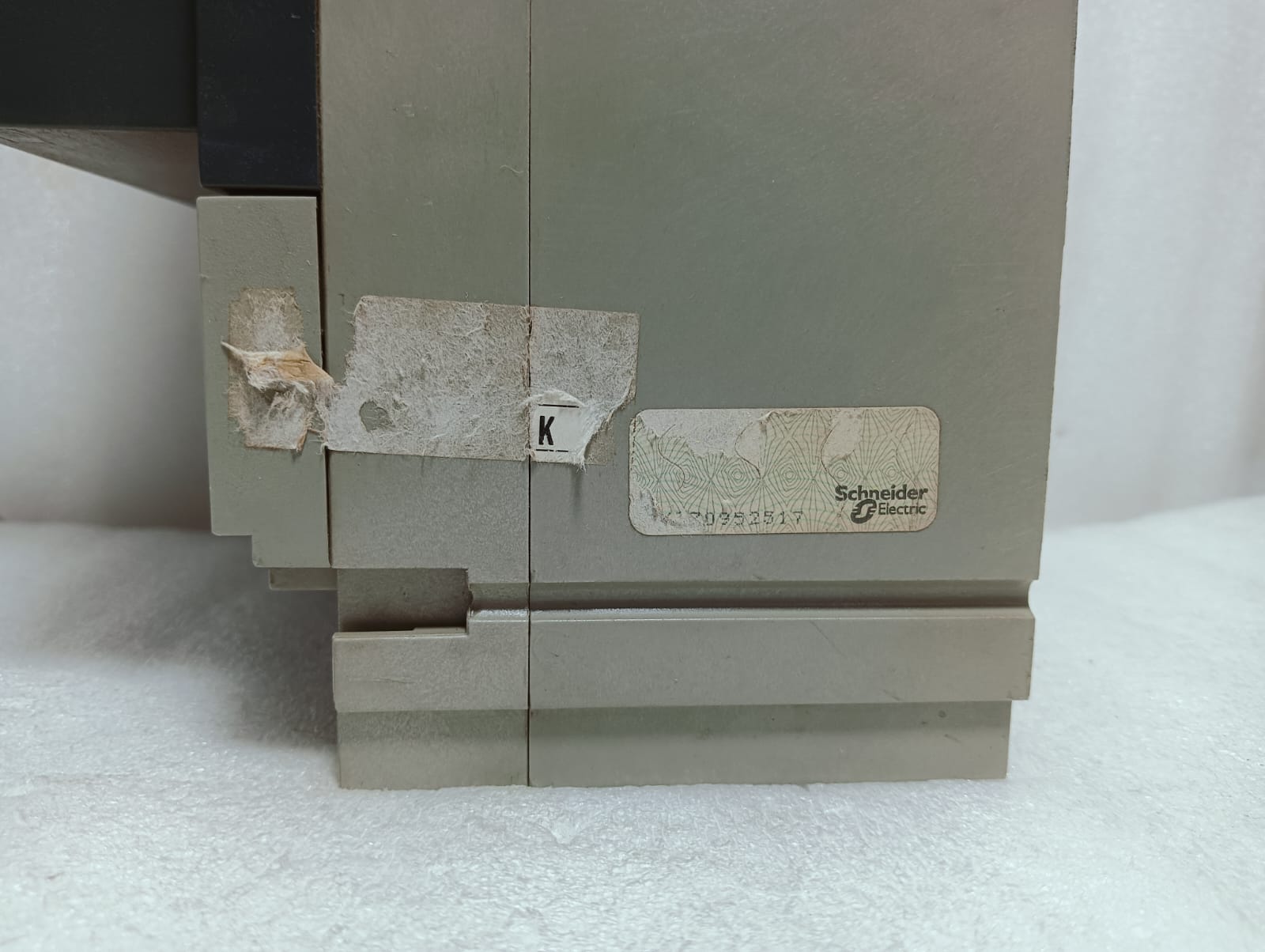

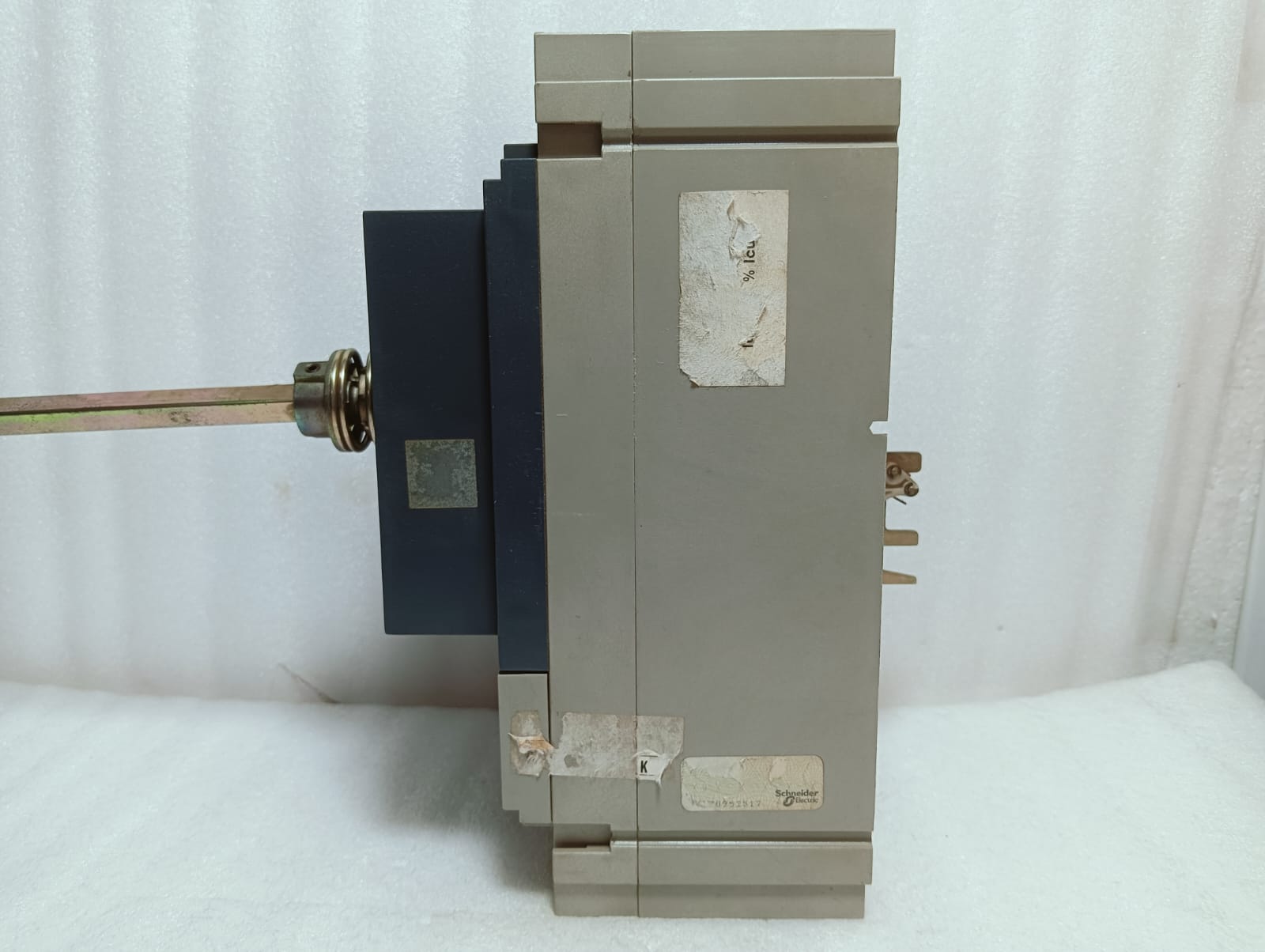

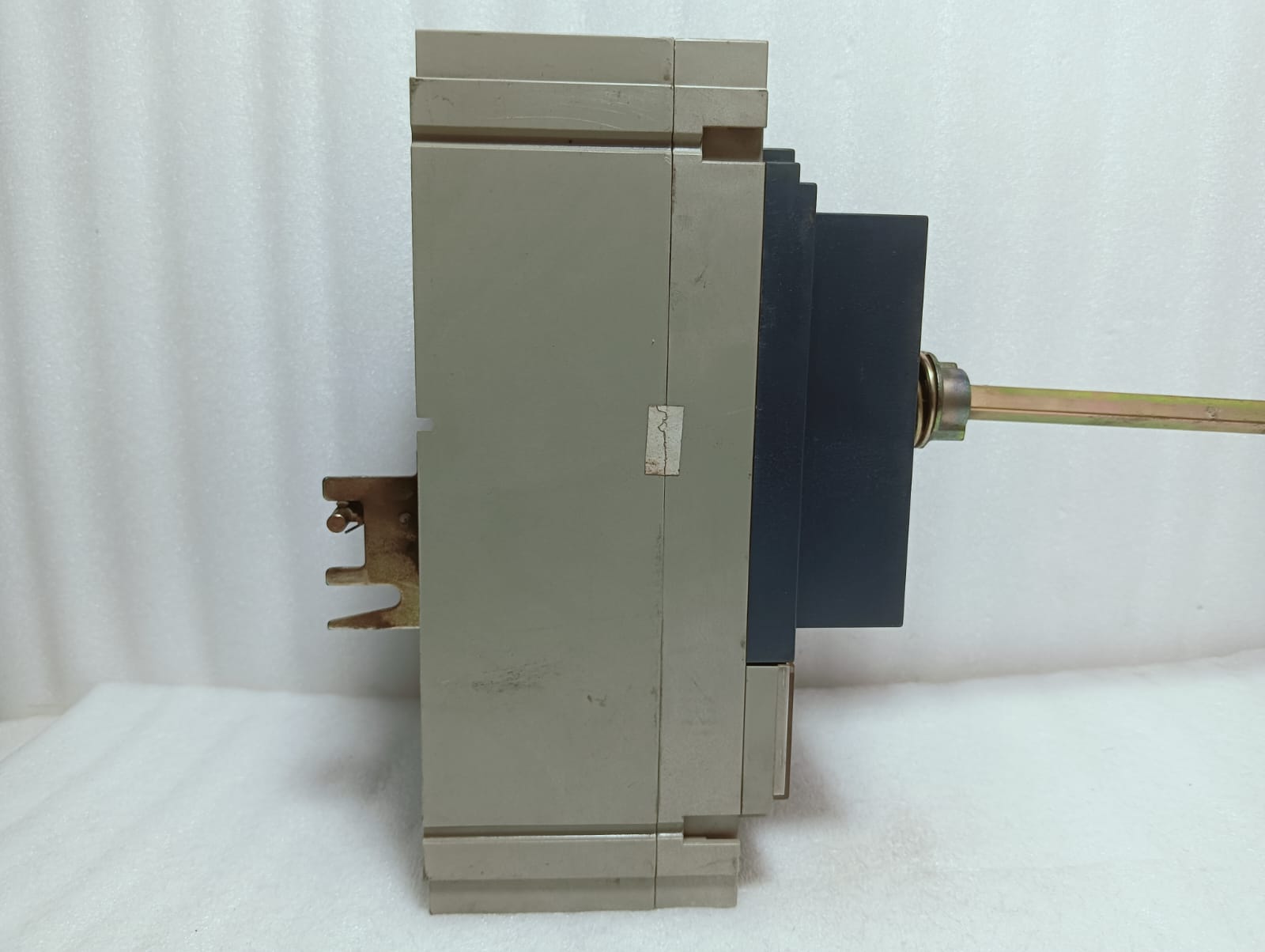

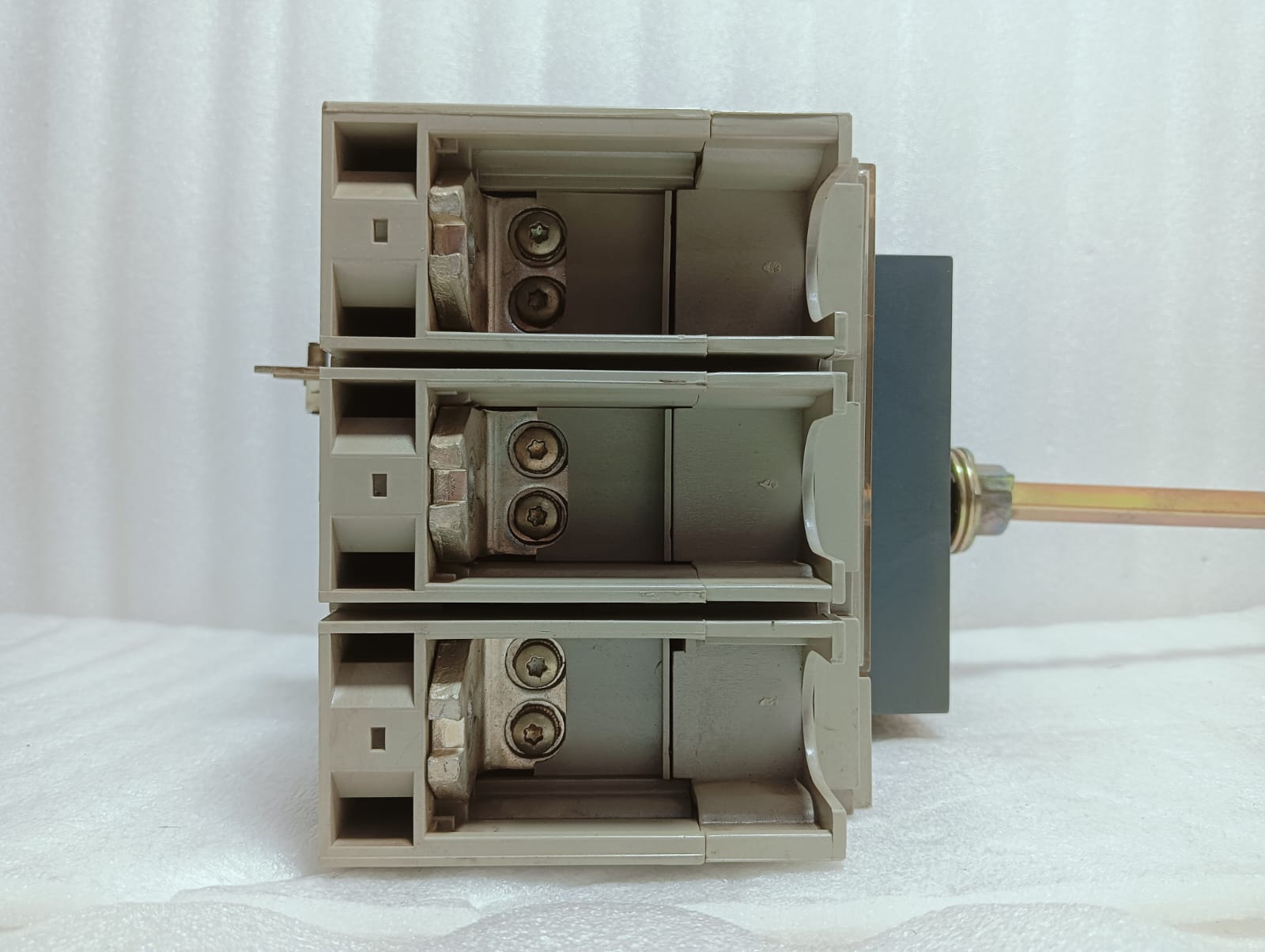

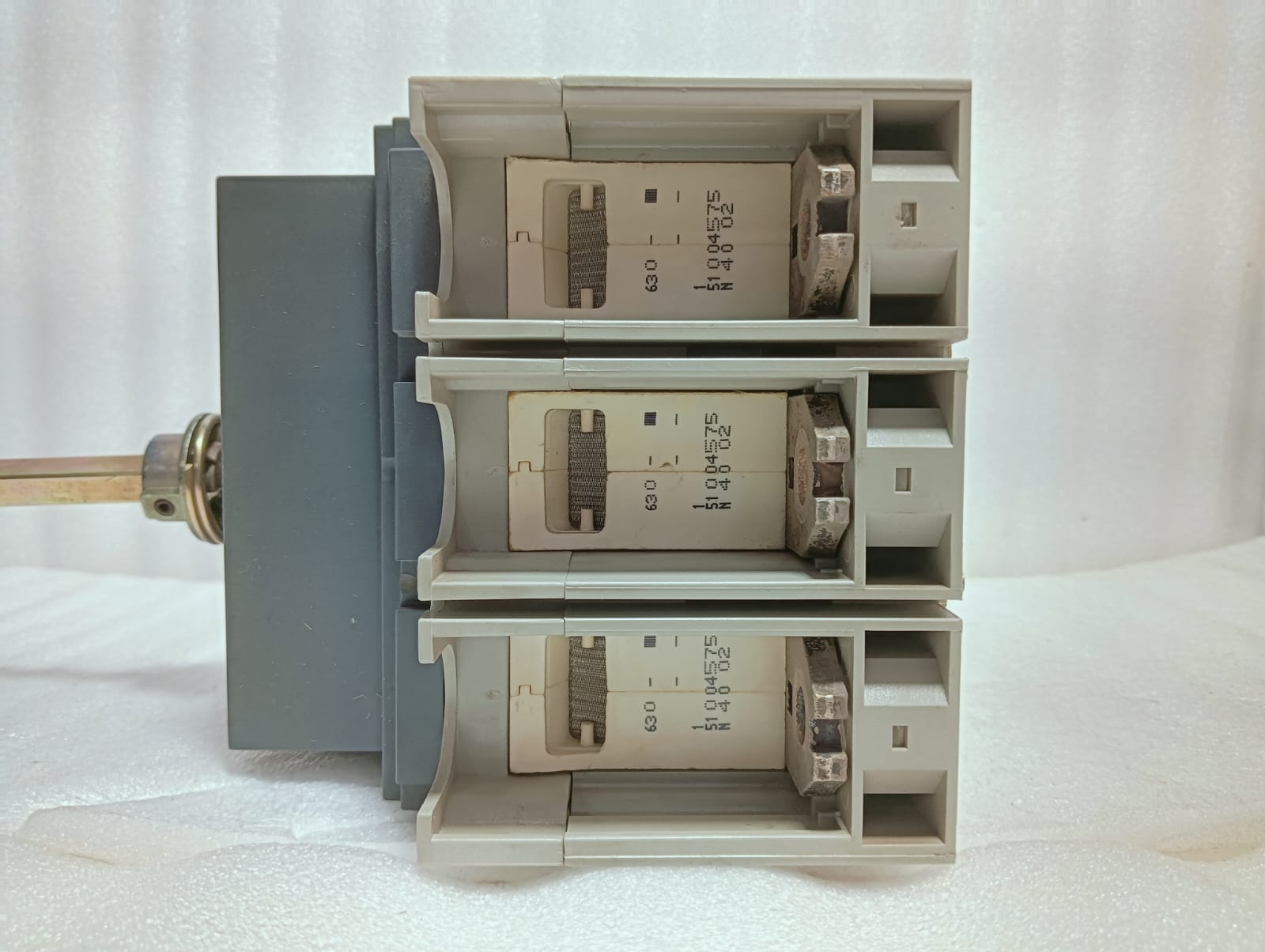

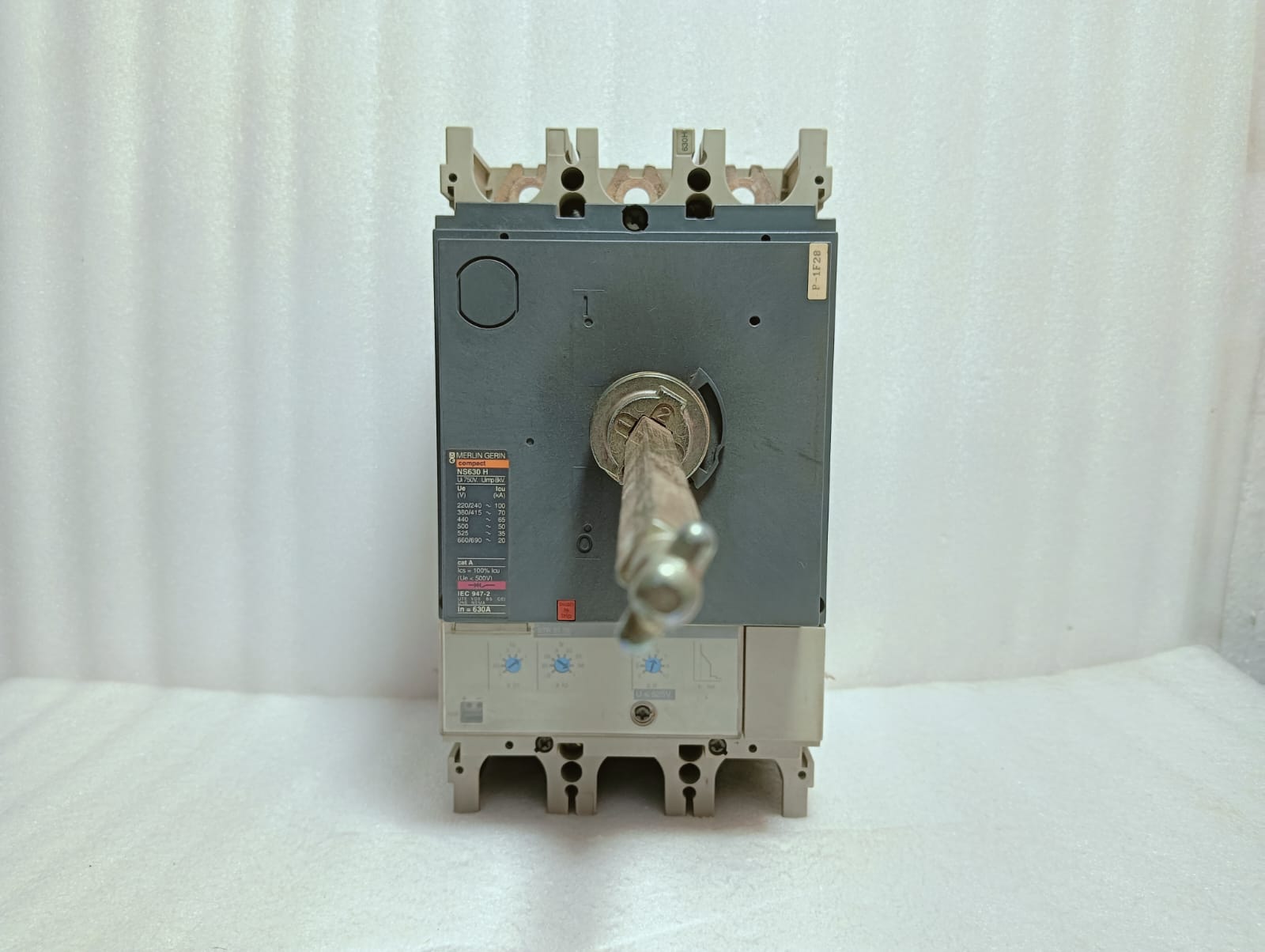

Merlin Gerin Compact NS630 H Molded Circuit Breaker 3 Pole STR 23 SE 630A

Brand: Merlin Gerin
Exact Model: compact NS630 H
MPN: STR 23 SE
Type: Molded Case Circuit Breaker (MCCB)

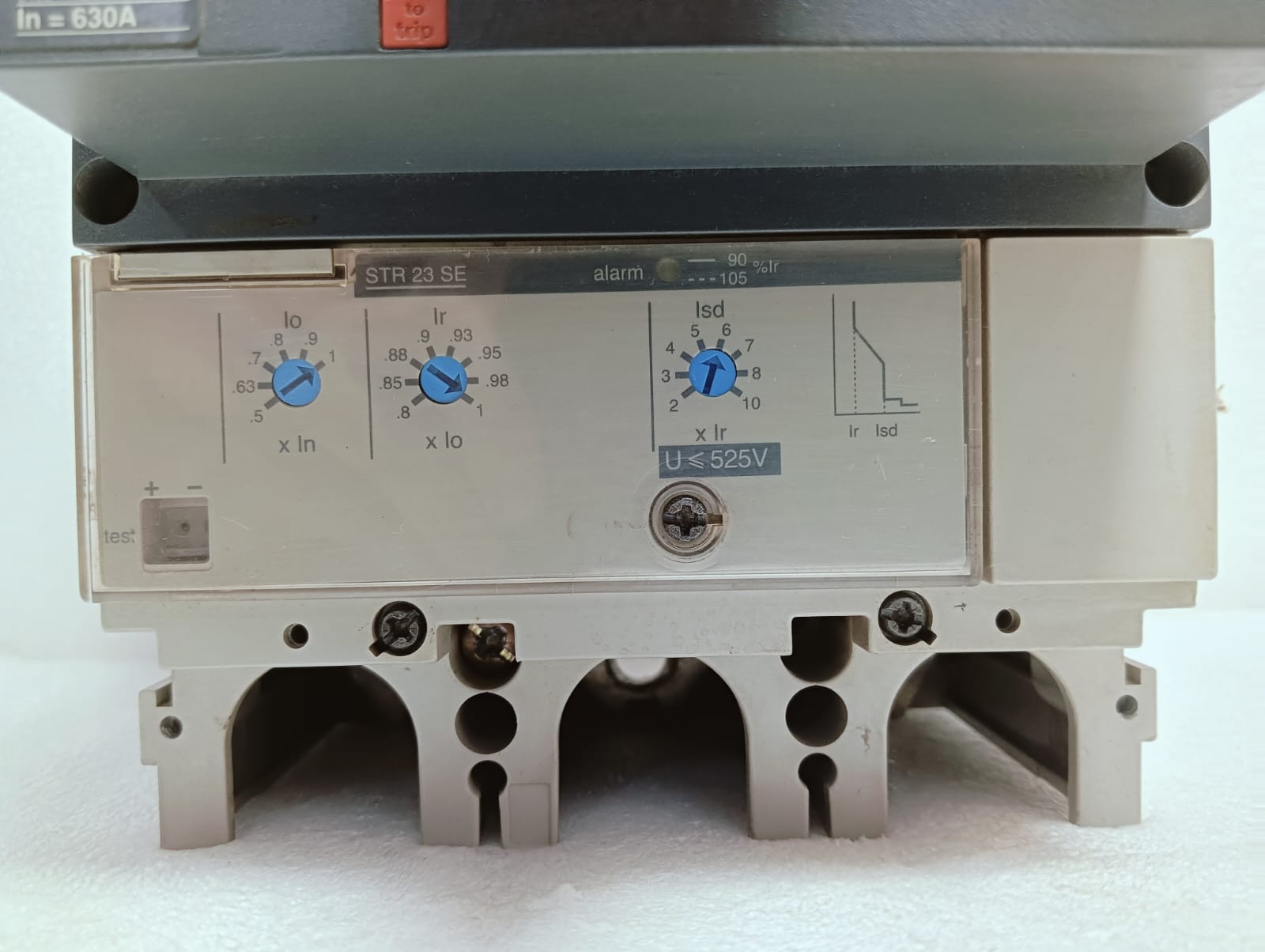

Controller Platform: STR 23 SE Electronic Trip Unit
Input Voltage: Up to 690V AC (Ue Operational), 750V (Ui Insulation)
Output Voltage: Up to 690V AC
Current Rating: 630A (In = 630A)
Power (AC/DC): AC (50/60 Hz compatibility implied by ~ symbol)
Country of Origin: Italy

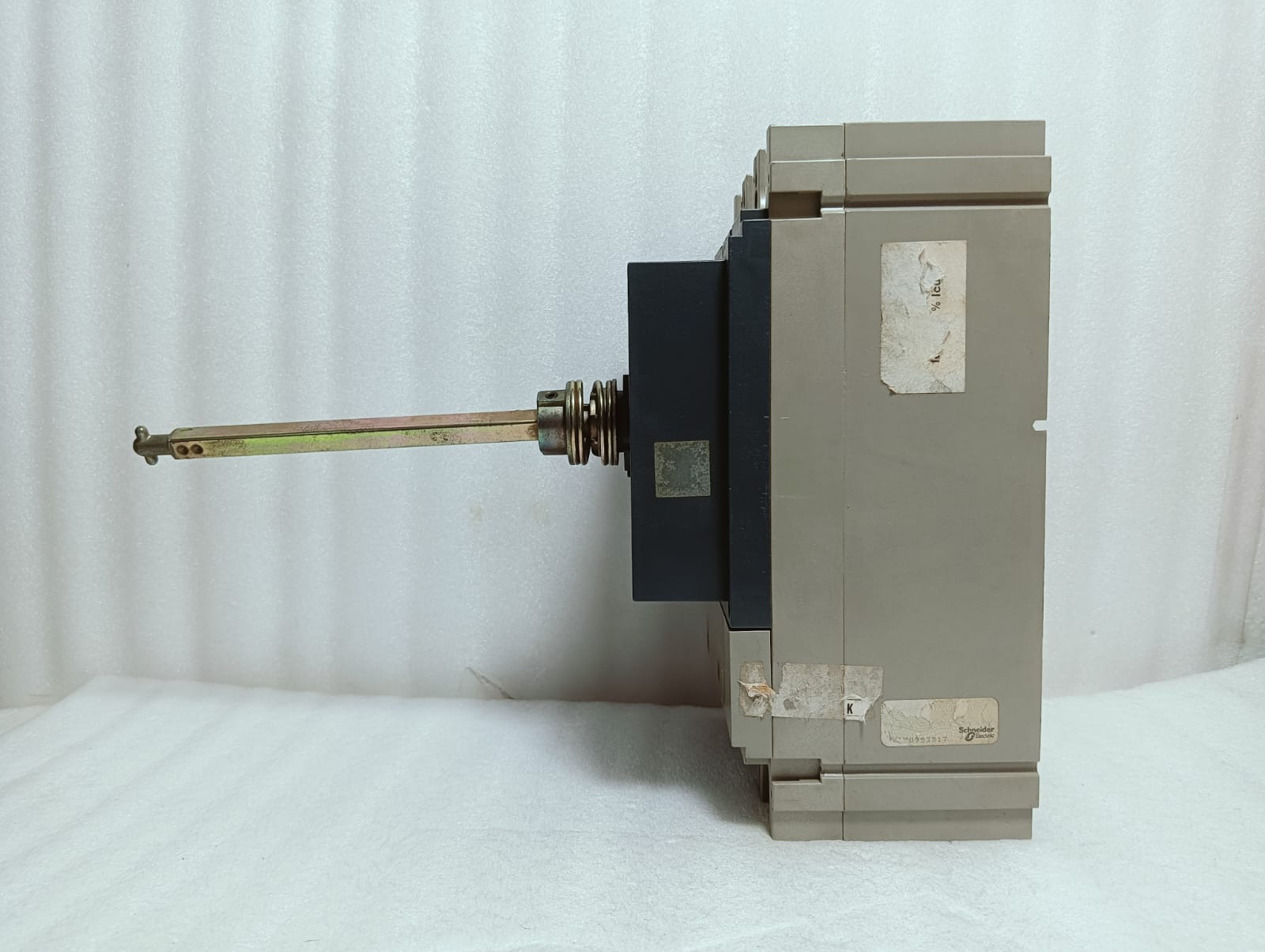

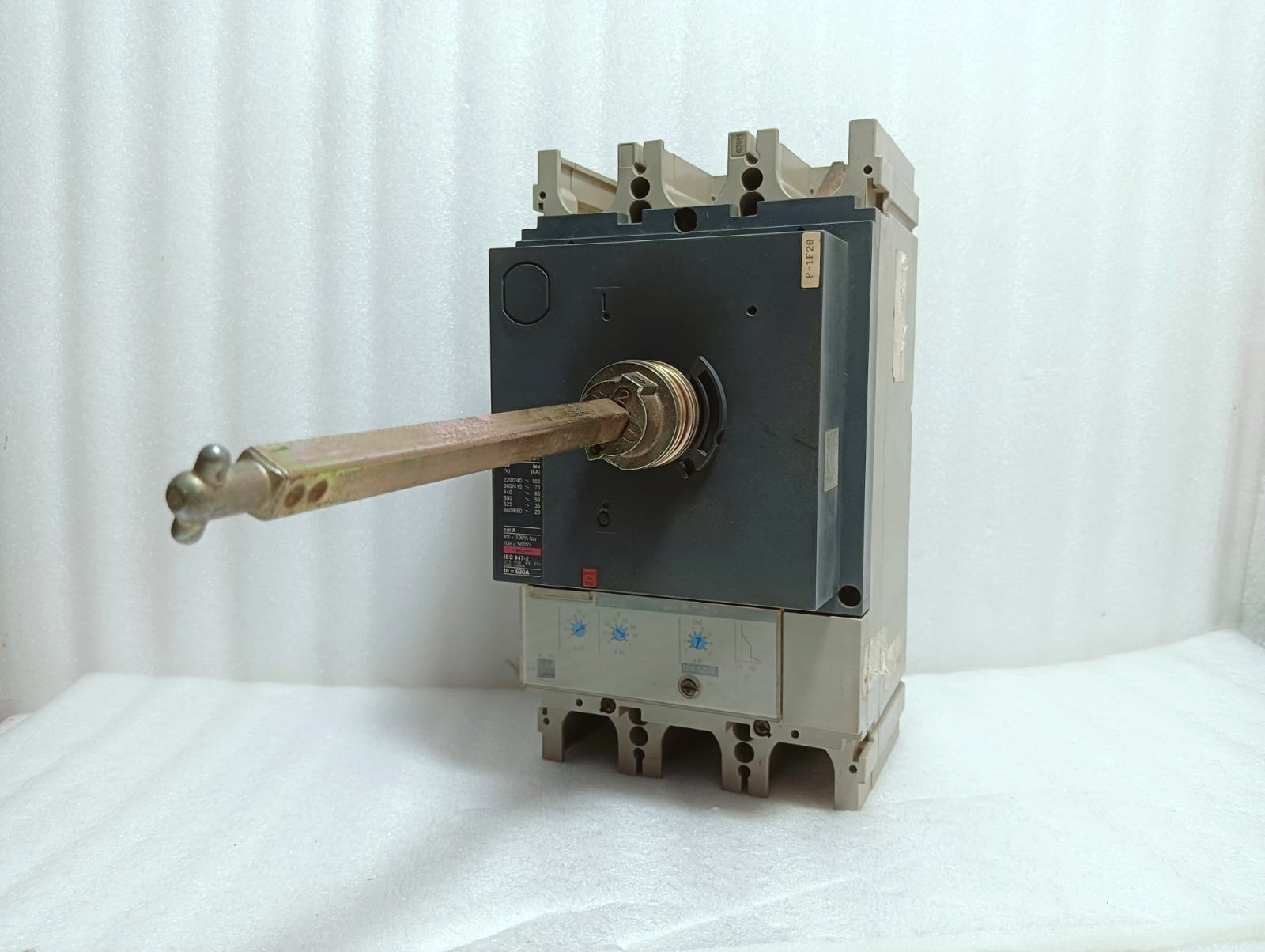

Features: 3-Pole configuration, Extended Rotary Handle actuator mechanism, Adjustable thermal setting Ir (0.5 to 1 x In), Adjustable magnetic setting Isd (2 to 10 x Ir).

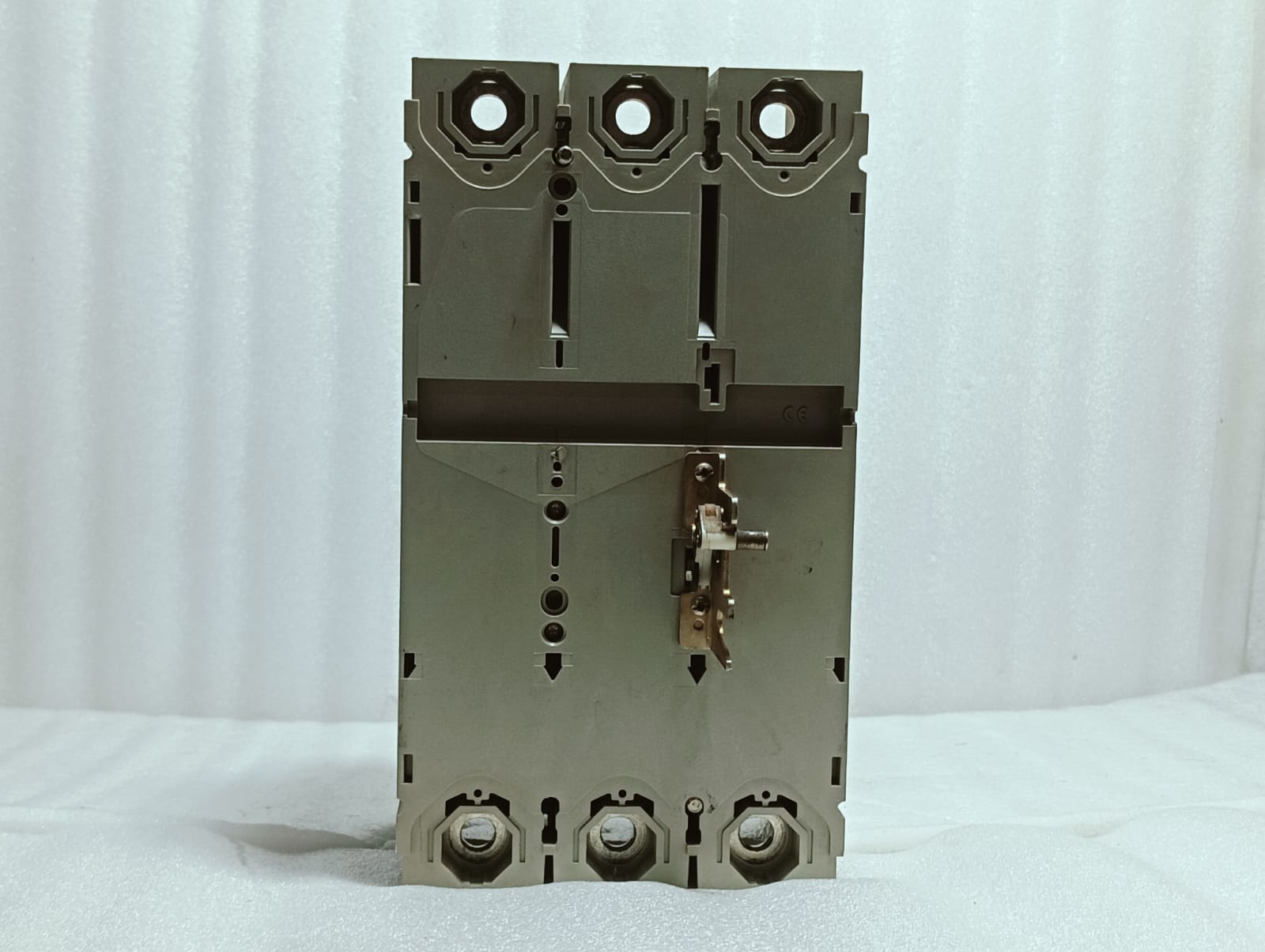

Mounting: Base / Panel mount (Multi-hole screw mounting configuration)

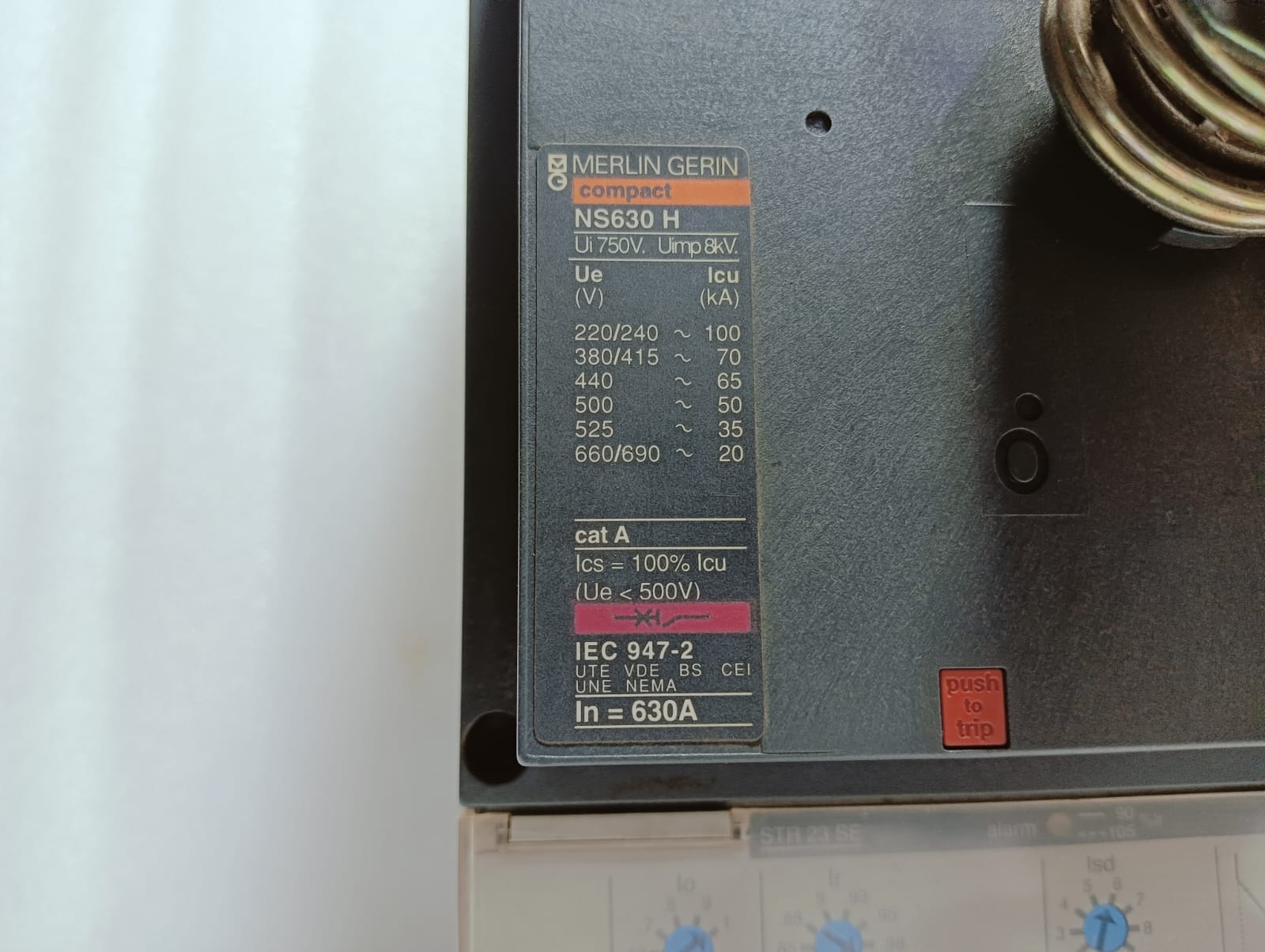

Interrupting Capacity (Icu): 100kA at 220/240V, 70kA at 380/415V, 65kA at 440V, 50kA at 500V, 35kA at 525V, 20kA at 660/690V
Standards Compliance: IEC 947-2, UTE, VDE, BS, CEI, UNE, NEMA
Condition: Used
