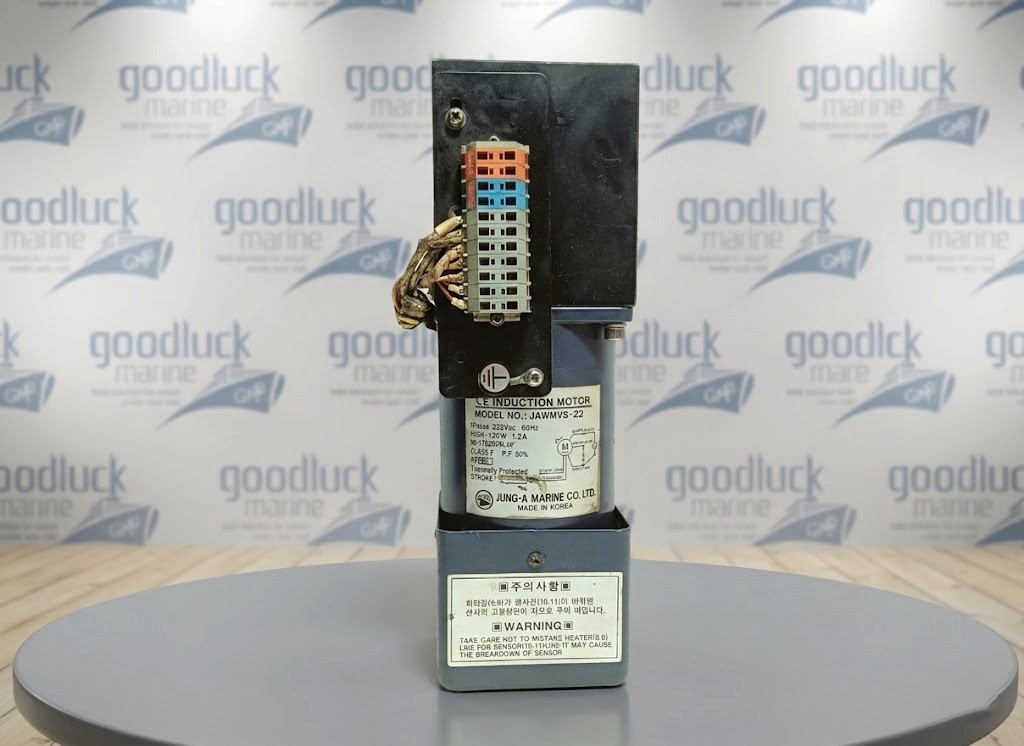

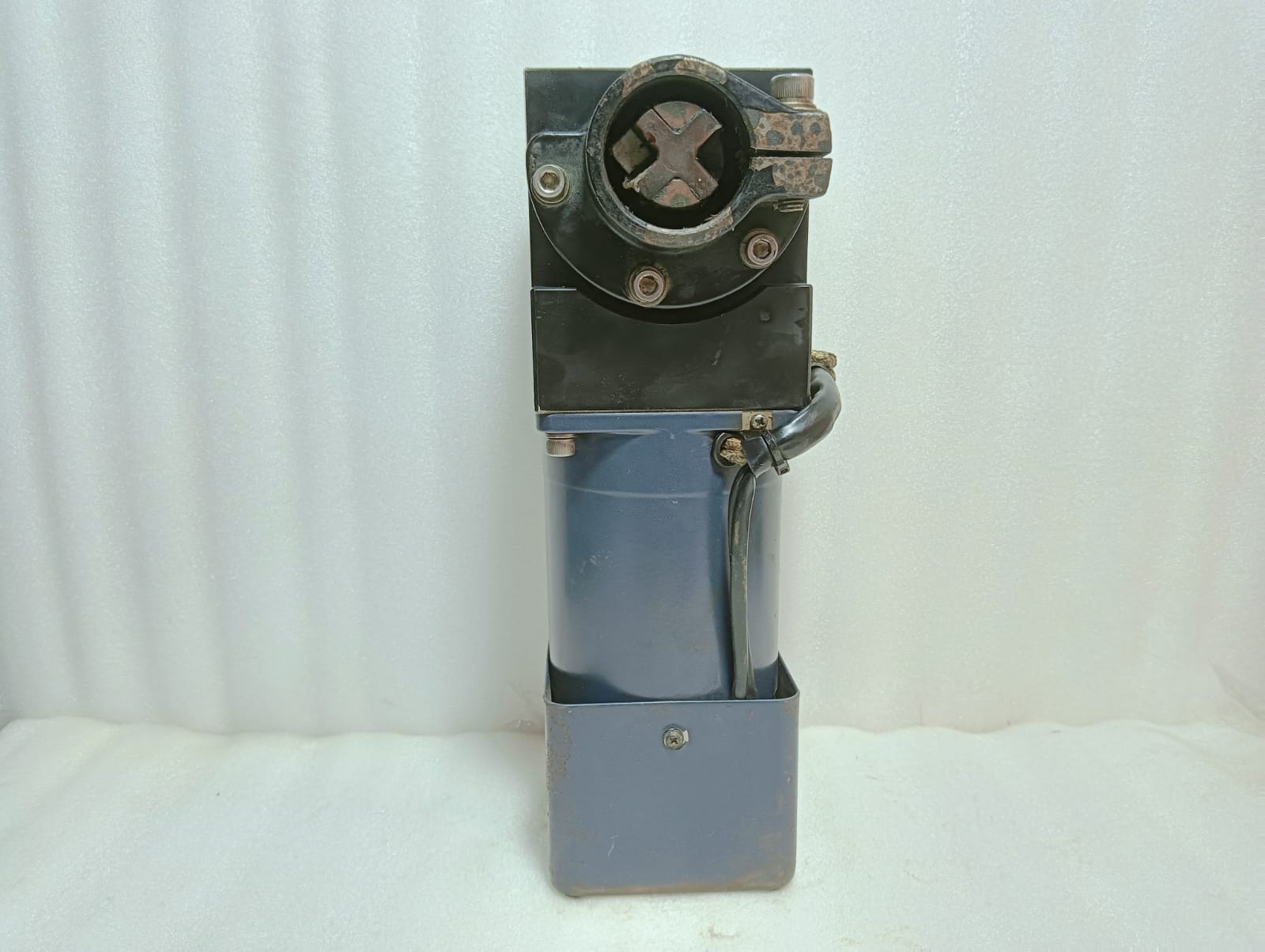

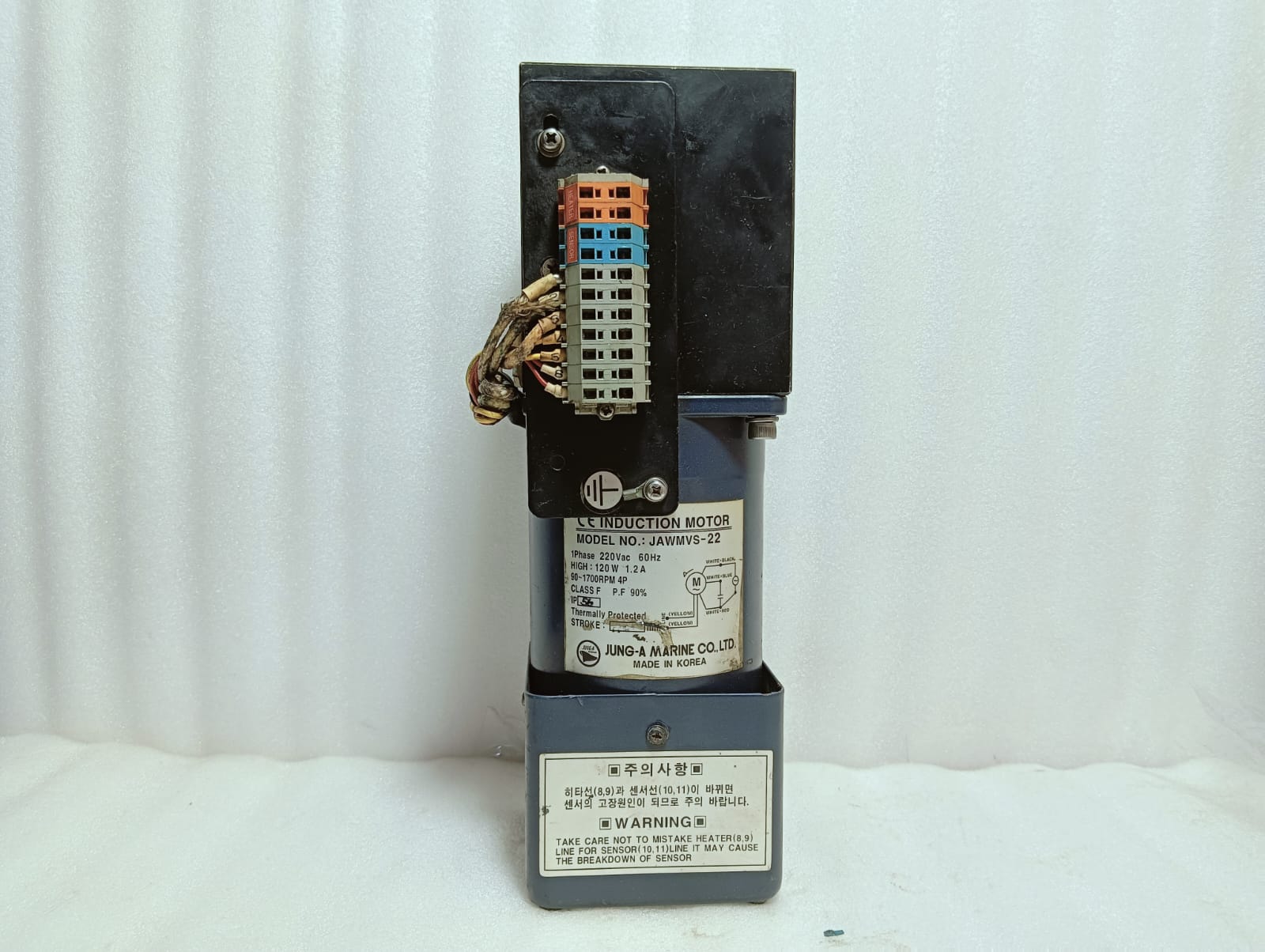

Jung-A Marine JAWMVS-22 Induction Motor

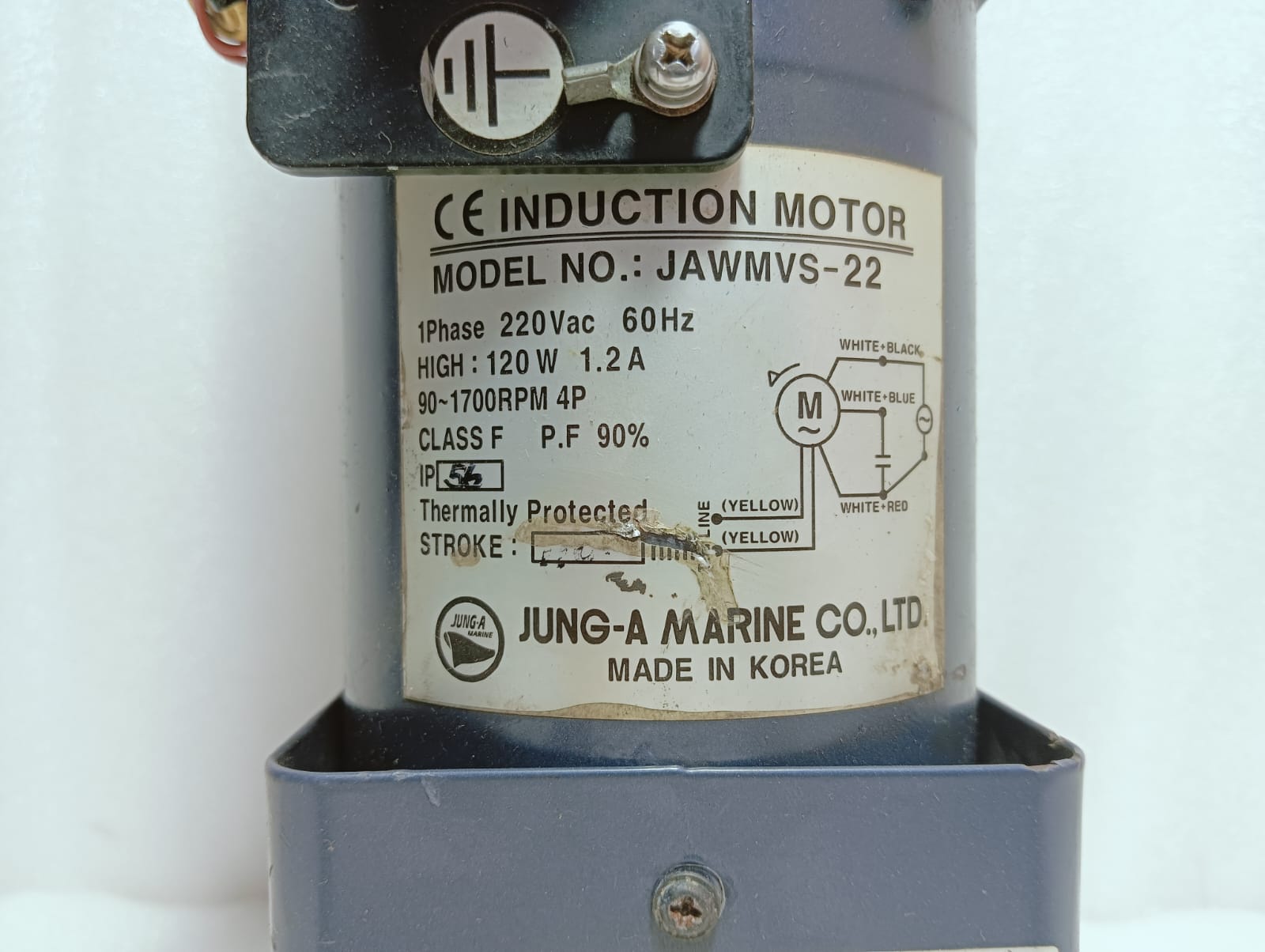

Model: Jawmvs-22
Type: 1-Phase Induction Motor (Speed Controlled)
Voltage: 220v Ac
Frequency: 60hz
Output Power: 120w (High) / 90w (Low)
Current: 1.2a (High) / 0.8a (Low)
Speed Range: 90 – 1700 Rpm
Number Of Poles: 4p
Insulation Class: Class F
Protection Rating: Ip67 (Dust-Tight And Waterproof)
Power Factor (P.F.): 90%
Thermal Protection: Internal Thermal Protector
Stroke Compatibility: Typically, 970mm – 1300mm (Depends On Application)
Weight: Approx. 4.75 Kg – 5.85 Kg
Origin: South Korea
