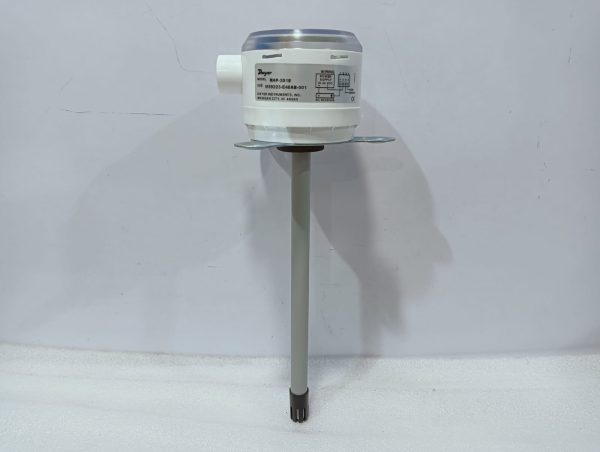

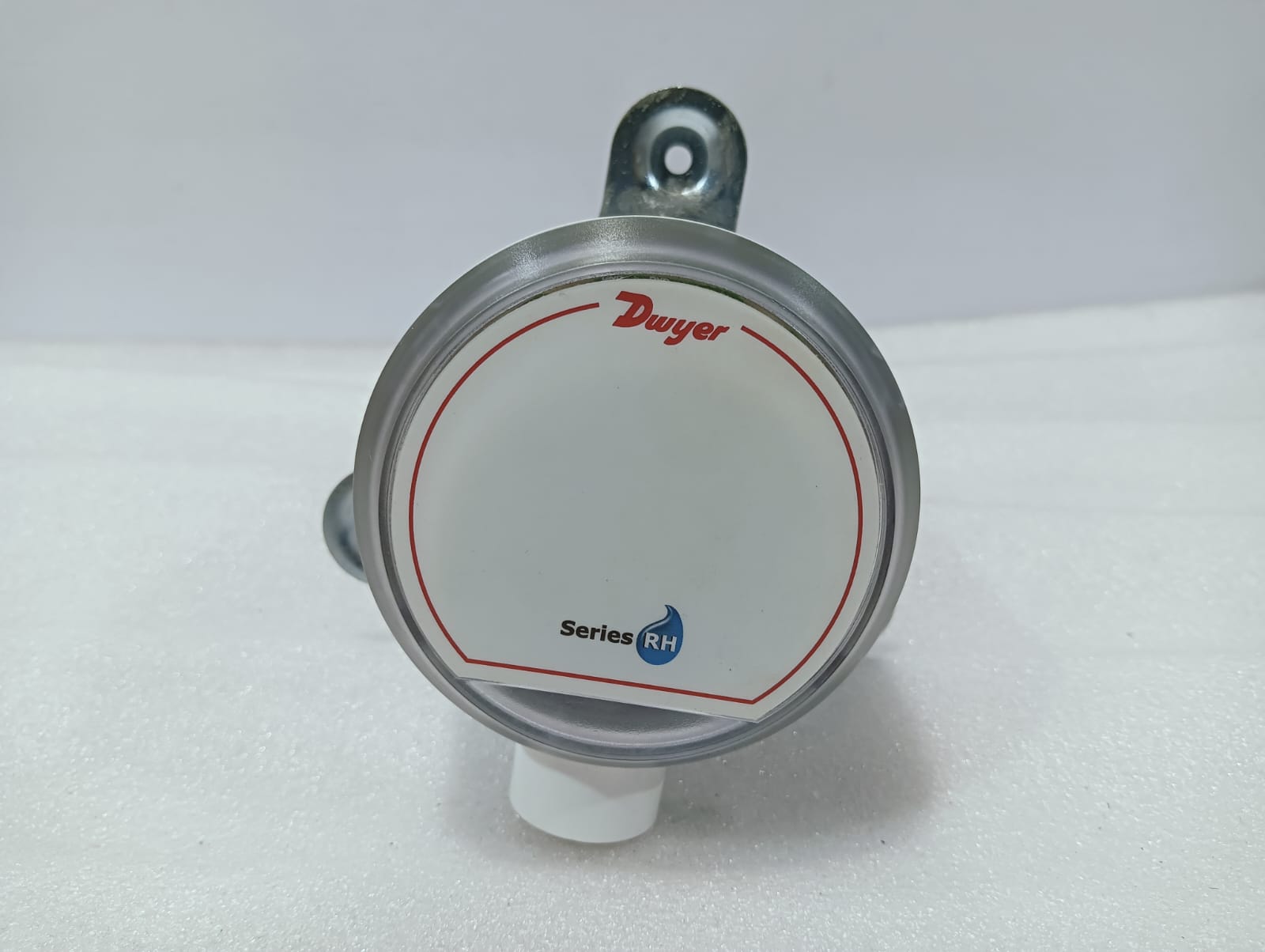

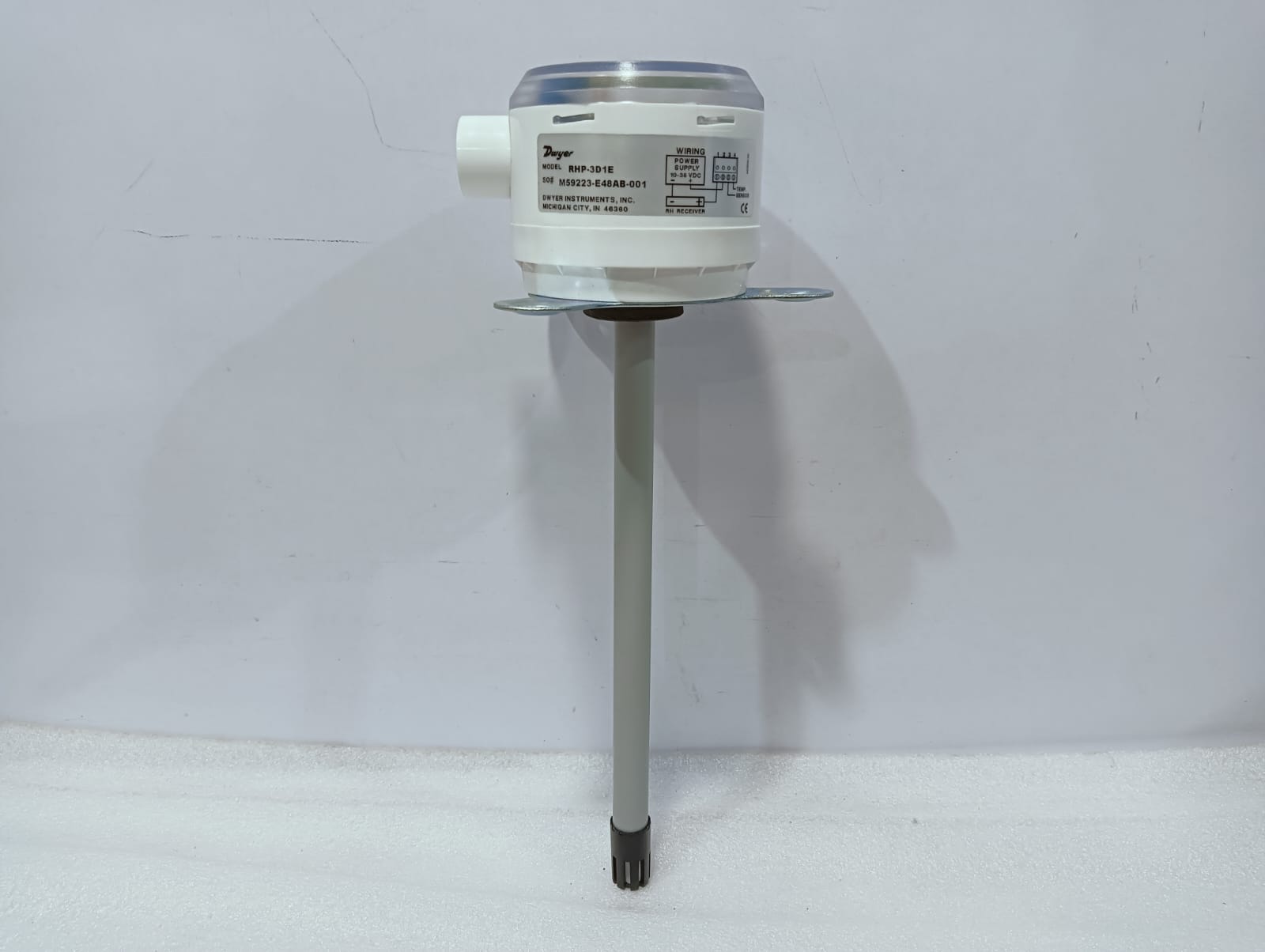

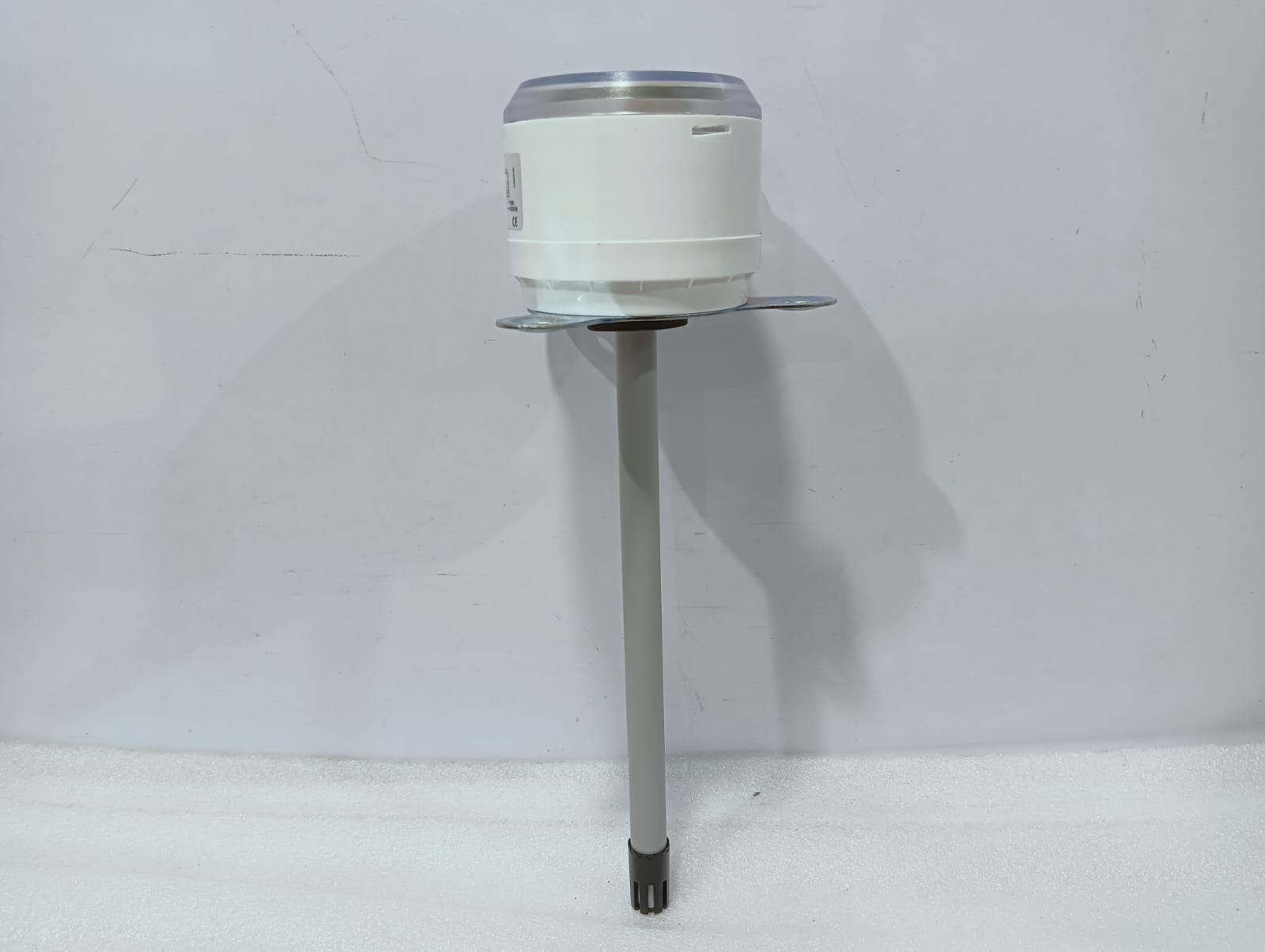

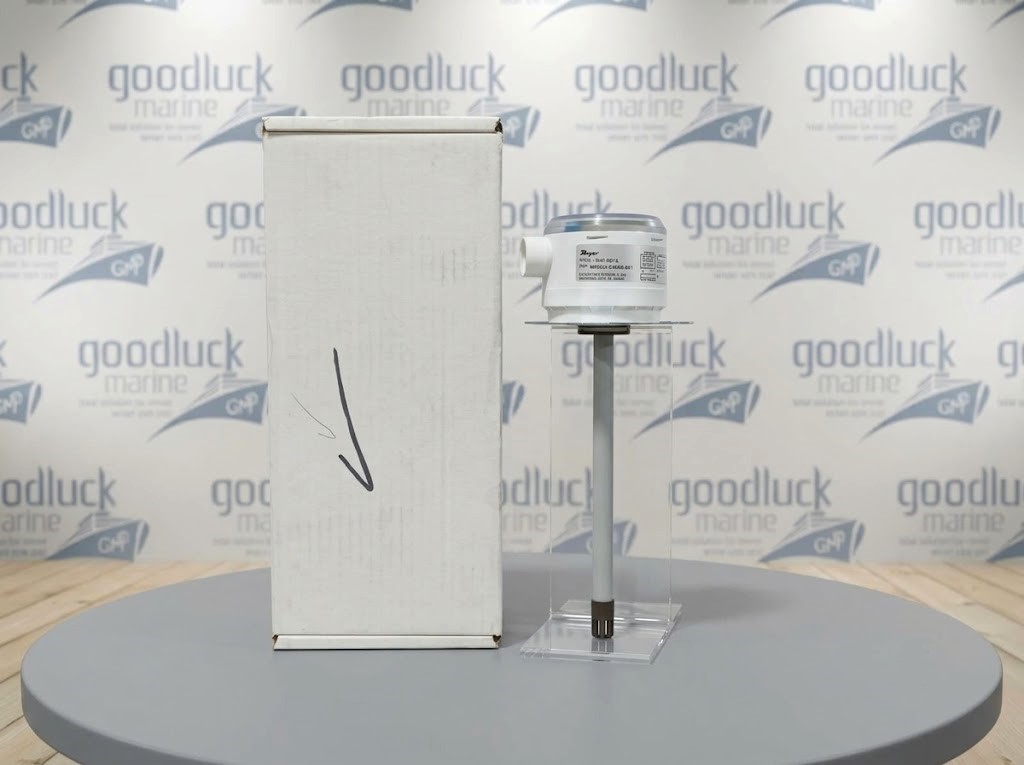

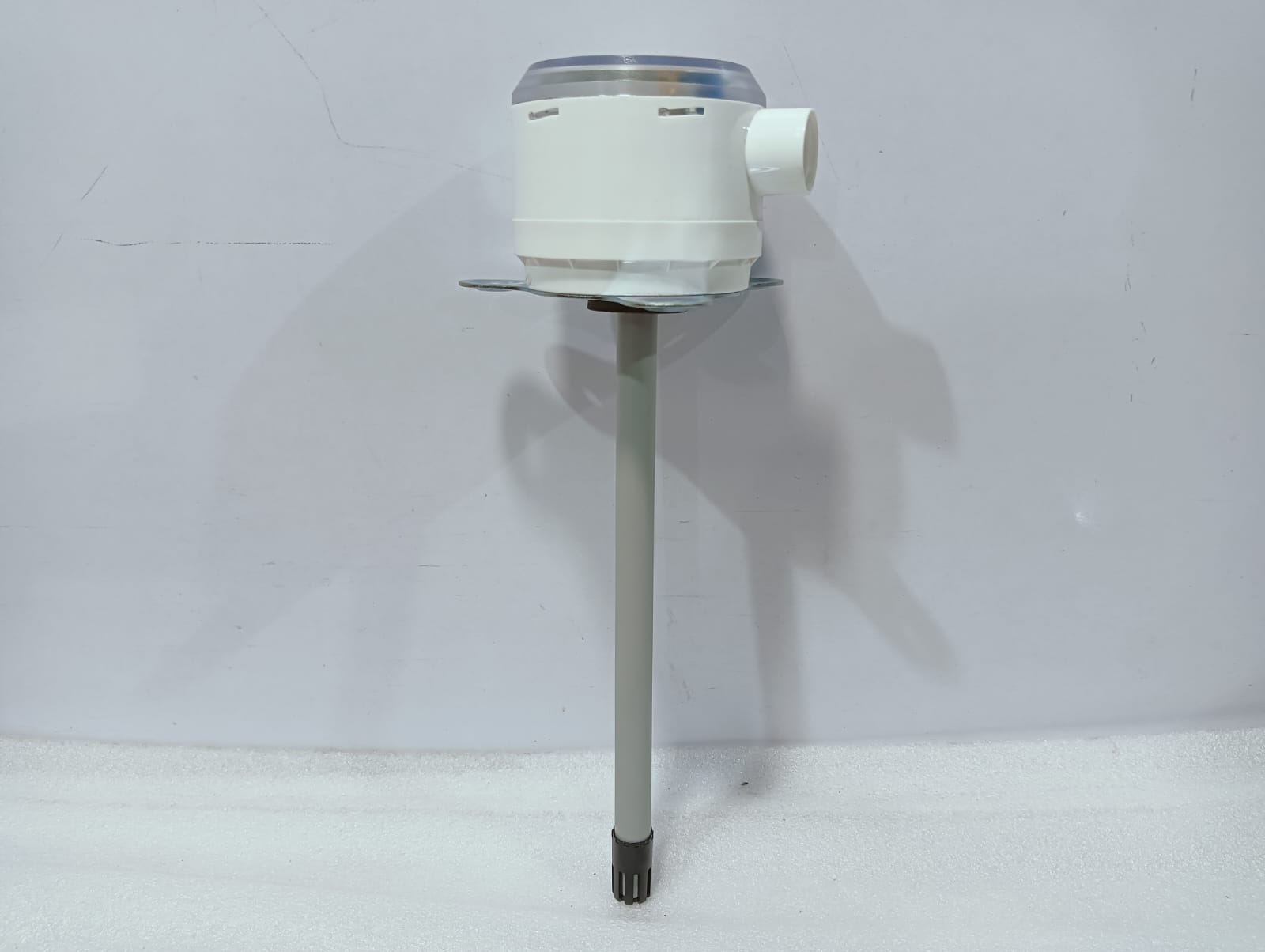

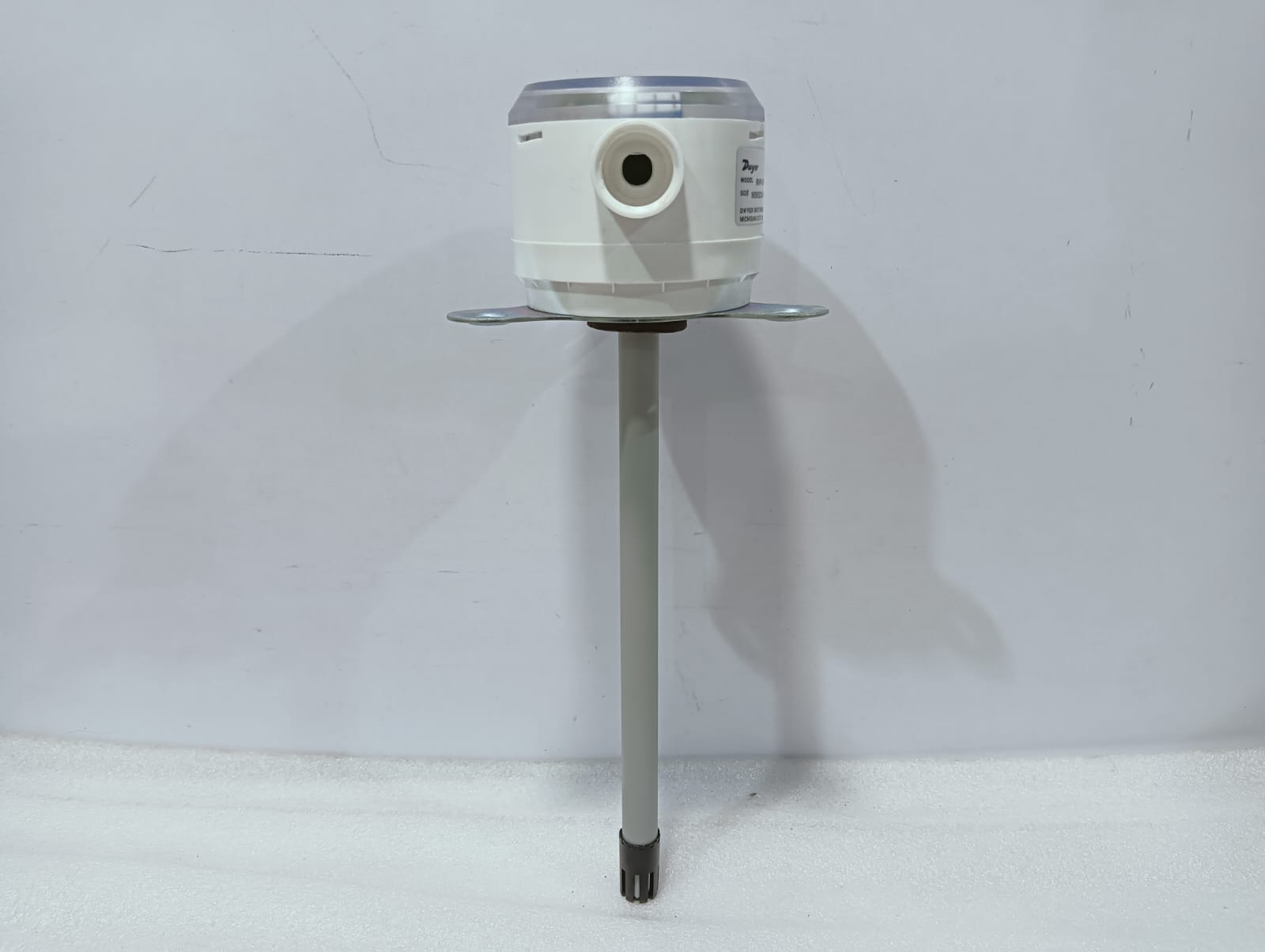

Dwyer RHP-3D1E Humidity Temperature Transmitter 10-35VDC 4-20mA Duct Sensor HVAC

Brand: Dwyer Instruments, Inc.

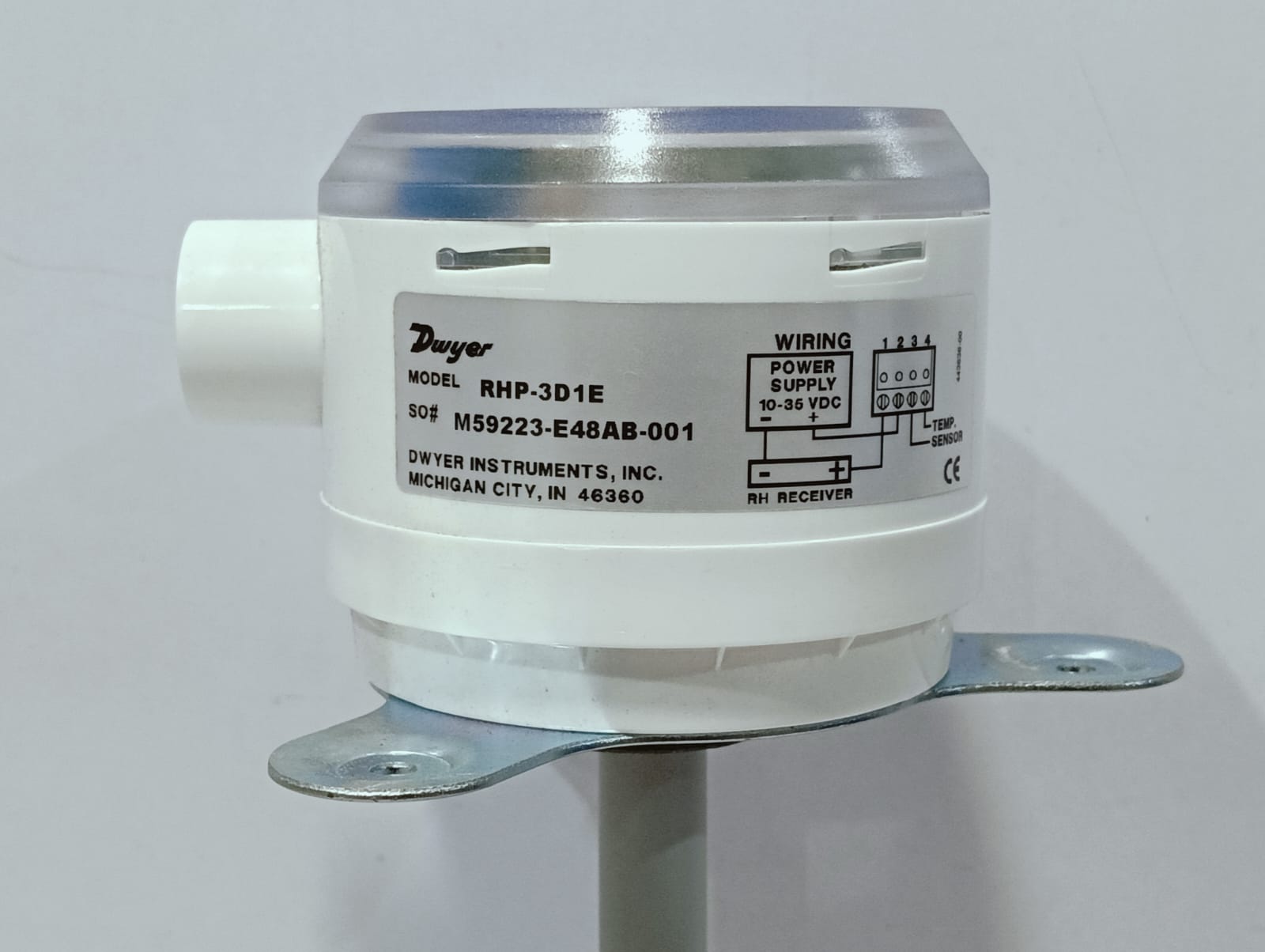

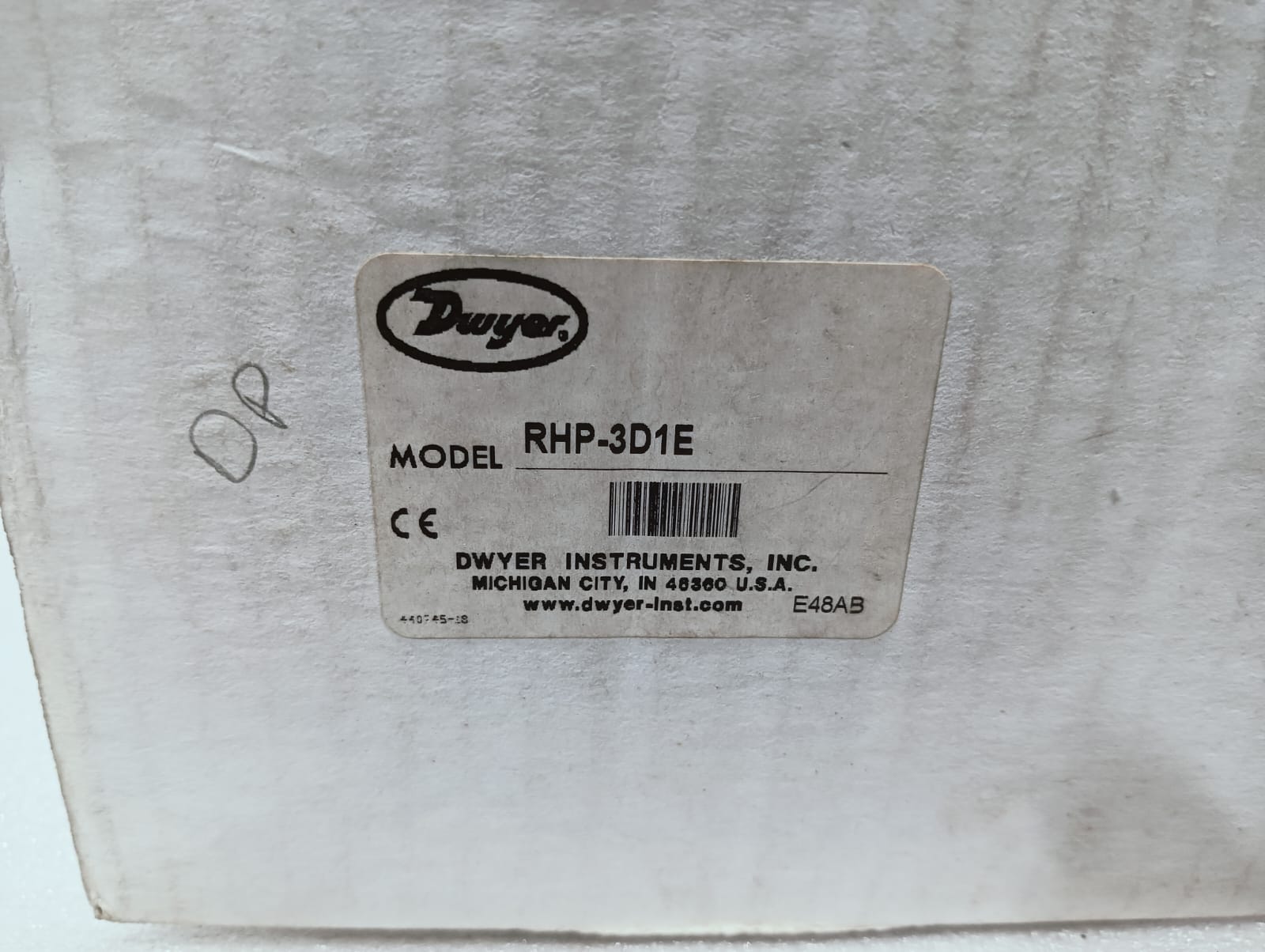

Exact Model: RHP-3D1E
MPN: RHP-3D1E
Type: Humidity / Temperature Transmitter
Controller Platform: HVAC / Building Automation Systems (BAS)
Input Voltage: 10-35 VDC
Output Voltage: 4-20 mA Loop Powered (RH Output) / Passive RTD Output
Current Rating: 4-20 mA Output Signal (RH Transmitter)
Power (AC/DC): DC (10-35 VDC)
Country of Origin: United States
Features: Sintered sensor tip protection, conduit housing connection, integral mounting flange, combined relative humidity and RTD temperature sensing
Mounting: Duct Mount
SO#: M59223-E48AB-001
RH Accuracy: ±3% RH
Temperature Sensor Element: 1K Ohm Platinum RTD (DIN 385)
RH Output: 4-20 mA Loop Powered (Terminals 1 & 2)
Temperature Output: Passive 2-Wire RTD Sensor (Terminals 3 & 4)
Enclosure Rating: NEMA 4X / IP66 (Housing)
Standards & Certifications: CE

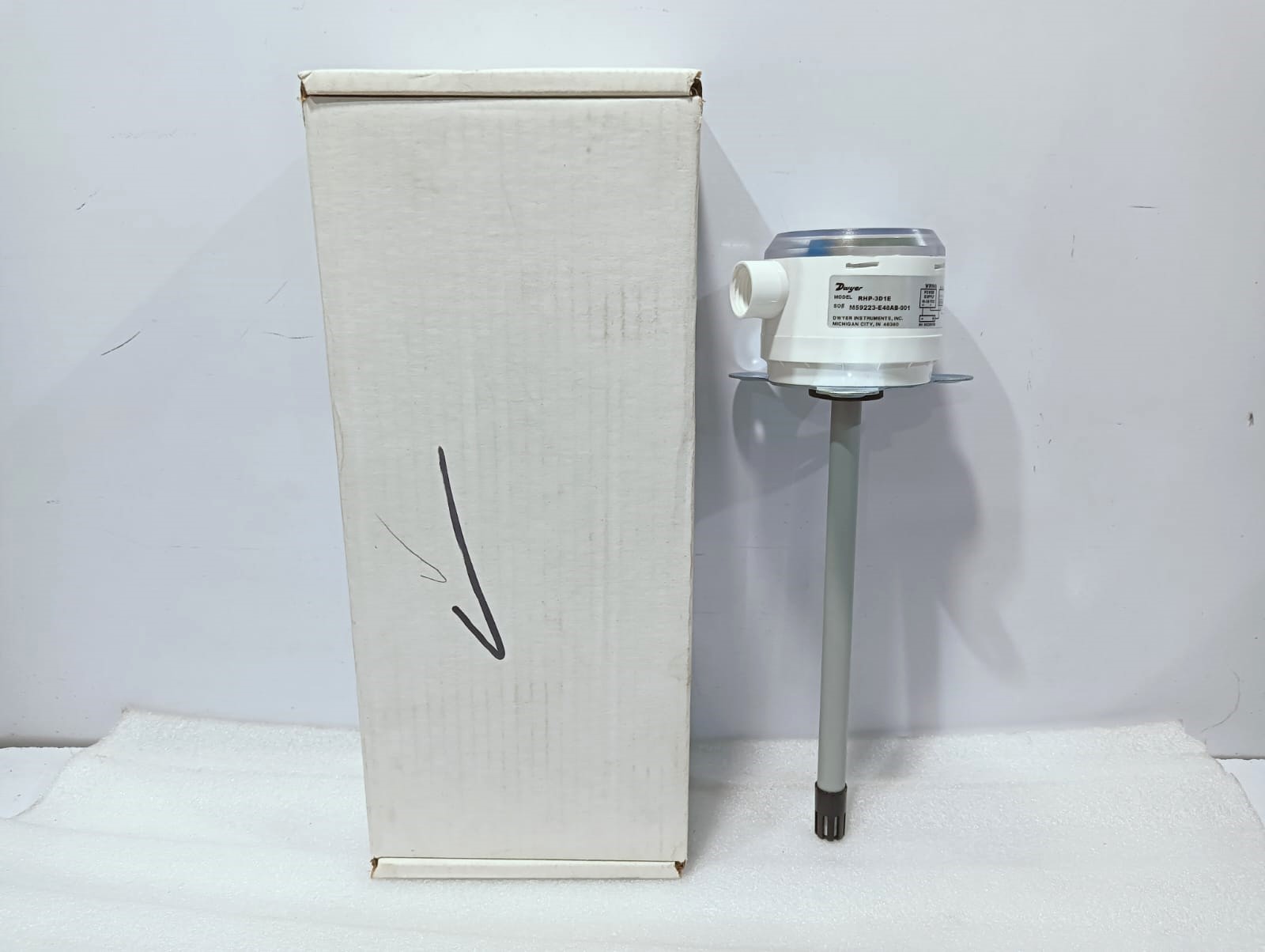

Condition: New
