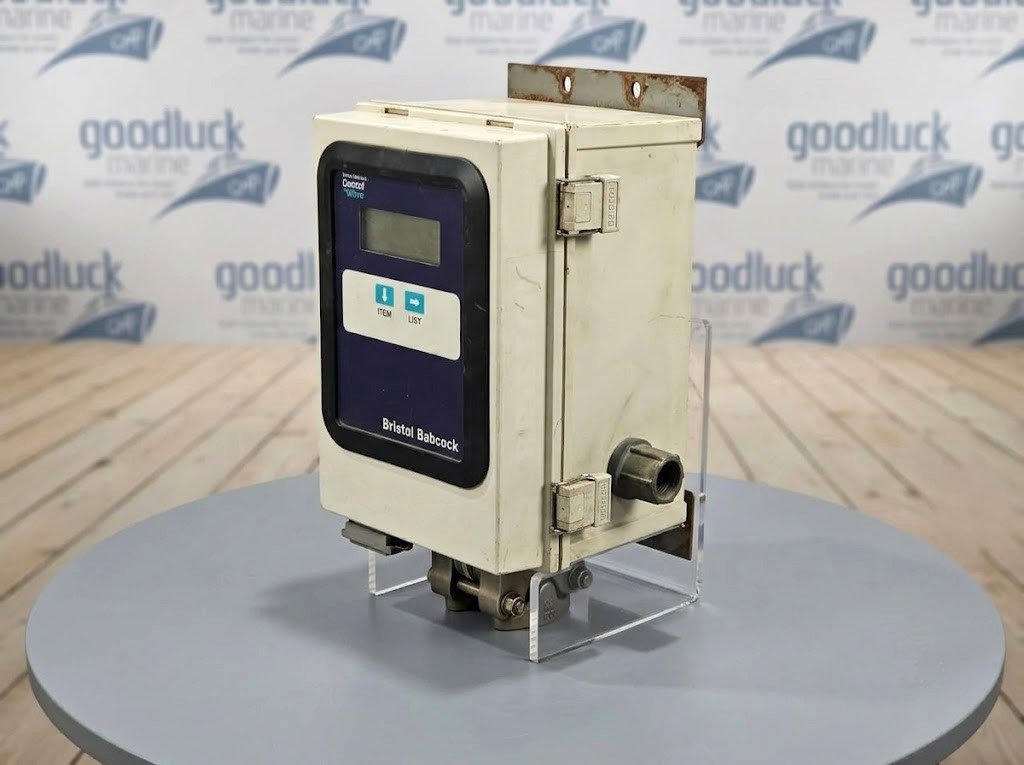

Bristol Babcock CWM-GFC-T4 ControlWave GFC Express Gas Flow Computer 6VDC System

Brand: Bristol Babcock (Bristol Inc.)

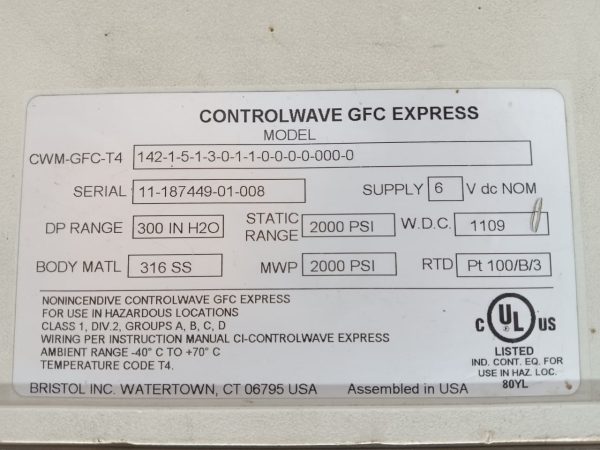

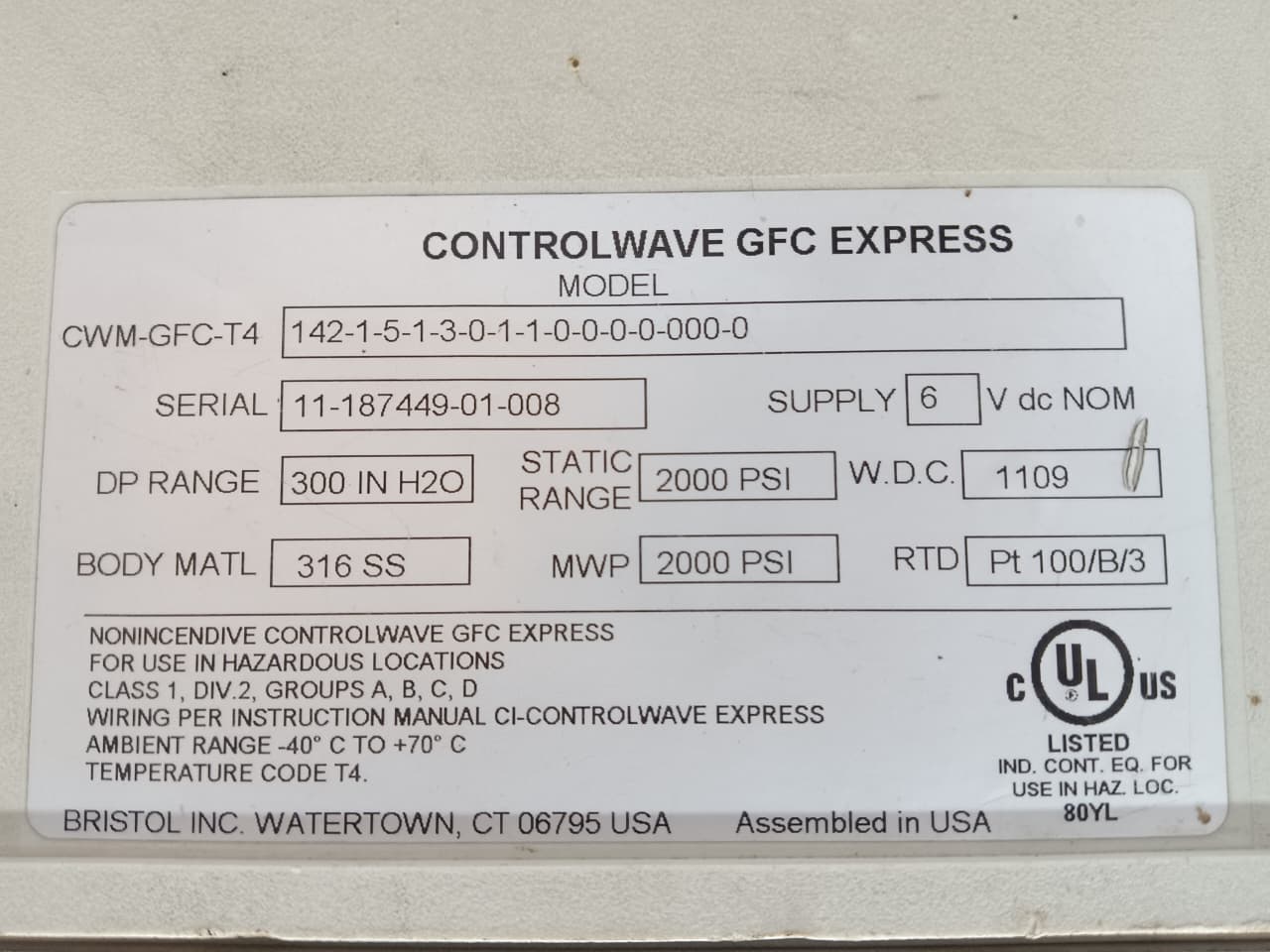

Exact Model: CWM-GFC-T4
MPN: 142-1-5-1-3-0-1-1-0-0-0-0-000-0
Type: Gas Flow Computer / RTU (Remote Terminal Unit)
Controller Platform: ControlWave GFC Express
Input Voltage: 6 V DC Nominal (6 V dc NOM)
Output Voltage: 6 V DC / Internal Regulated Low Voltage DC (Max 18 V DC input circuit rating)
Power (AC/DC): DC (Direct Current)
Country of Origin: United States (Assembled in USA)
Differential Pressure (DP) Range: 300 IN H2O
Static Pressure (SP) Range: 2000 PSI
Maximum Working Pressure (MWP): 2000 PSI
Process Body Material: 316 Stainless Steel (316 SS)
RTD Sensor Compatibility: Pt 100/B/3

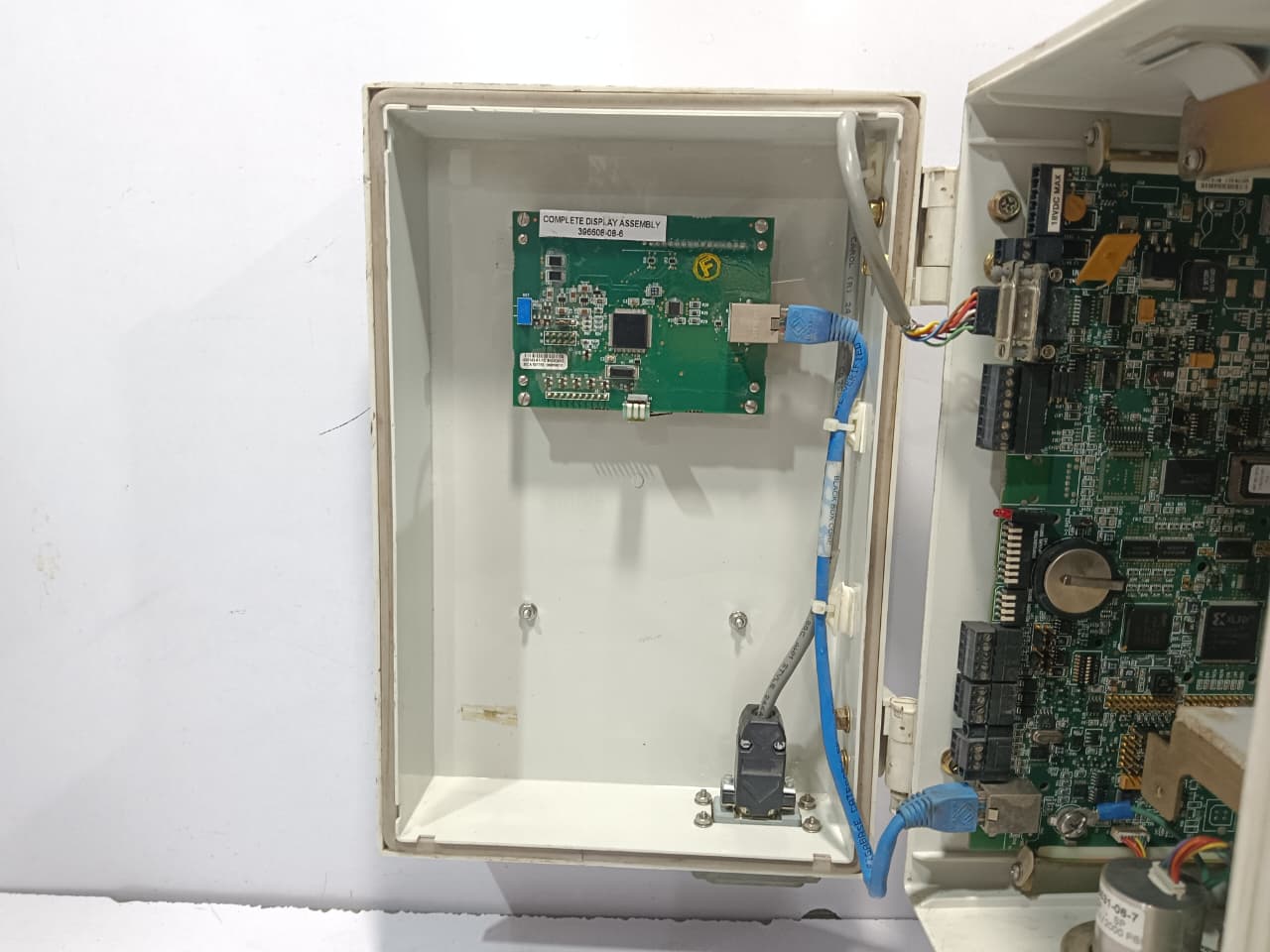

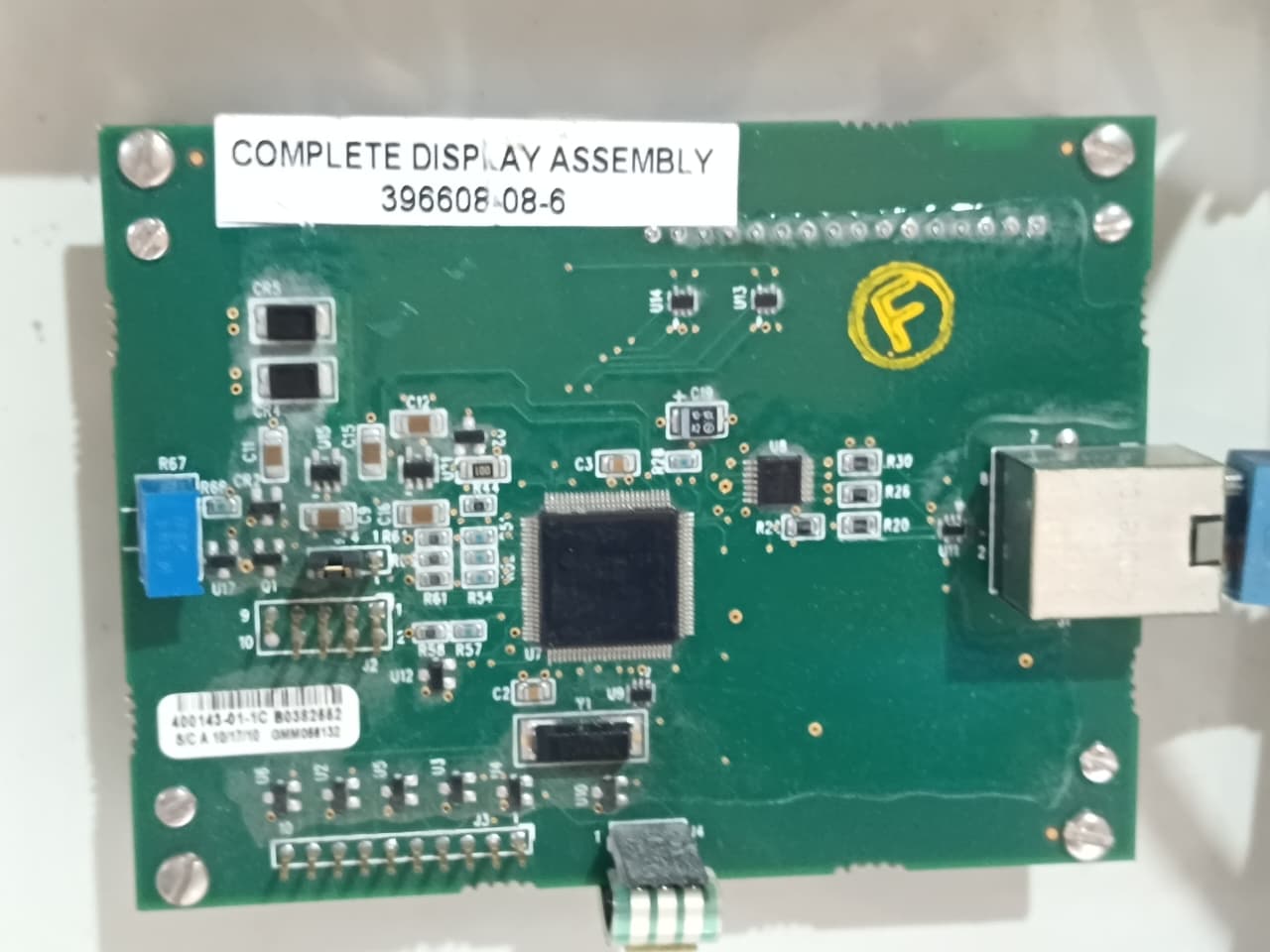

Display Assembly Part Number: 396608-08-6 (Complete Display Assembly with LCD)

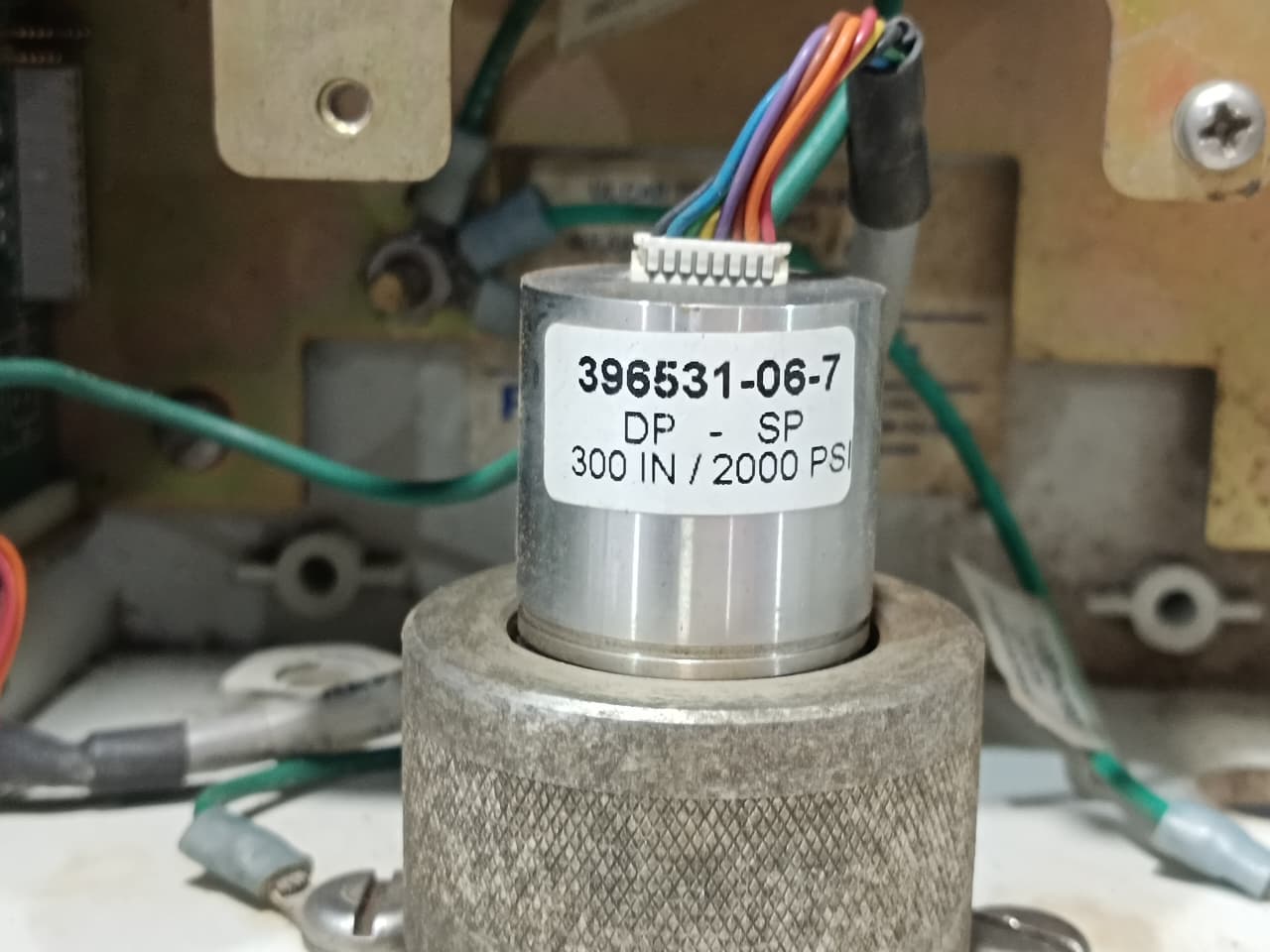

Sensor Transducer Module Part Number: 396531-06-7 (DP – SP 300 IN / 2000 PSI)

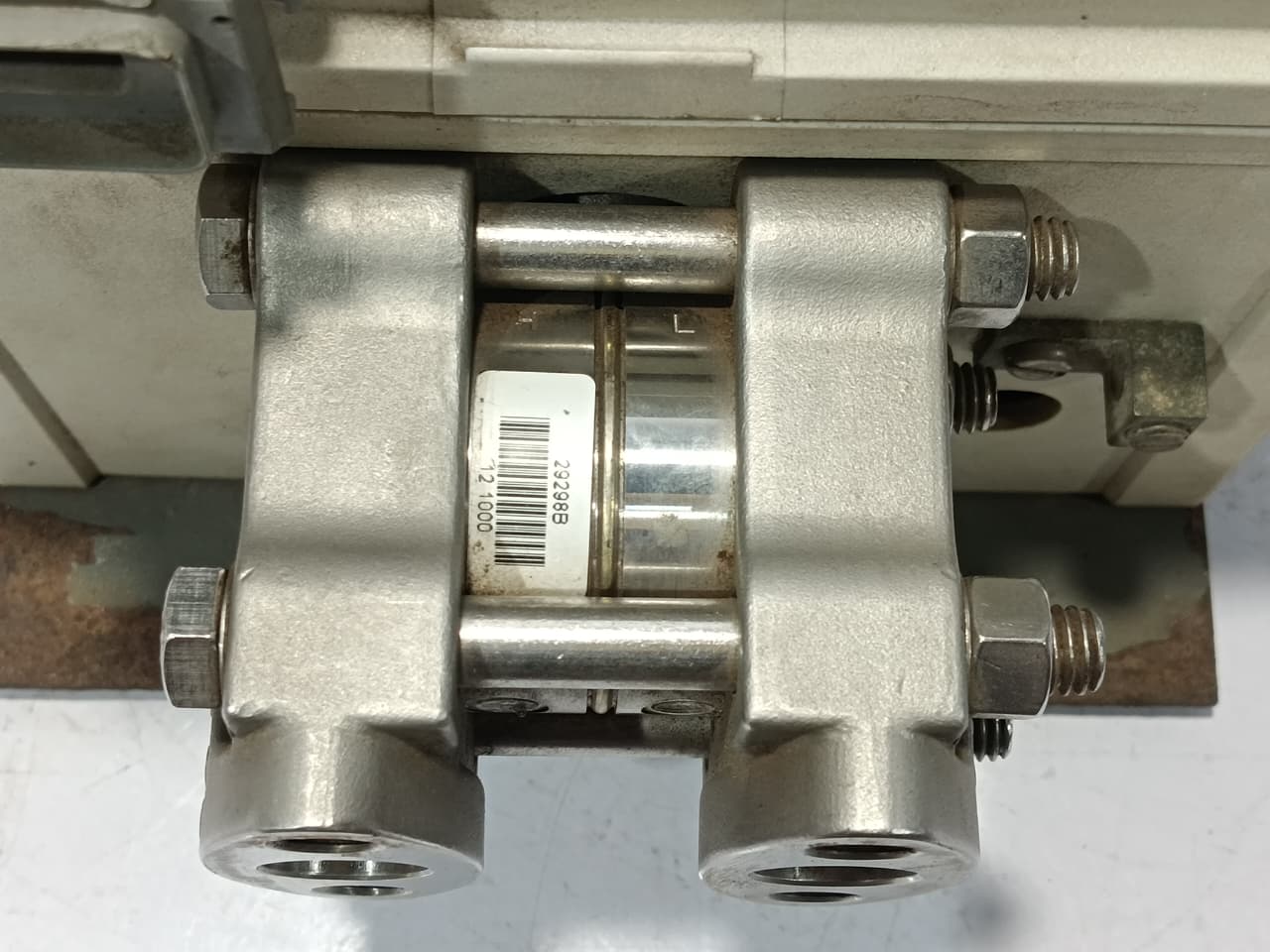

Transducer Cell Assembly Number: 292988
Hazardous Location Ratings: Nonincendive ControlWave GFC Express, UL Listed Class 1, Div. 2, Groups A, B, C, D; Temperature Code T4; Ambient Range -40°C to +70°C

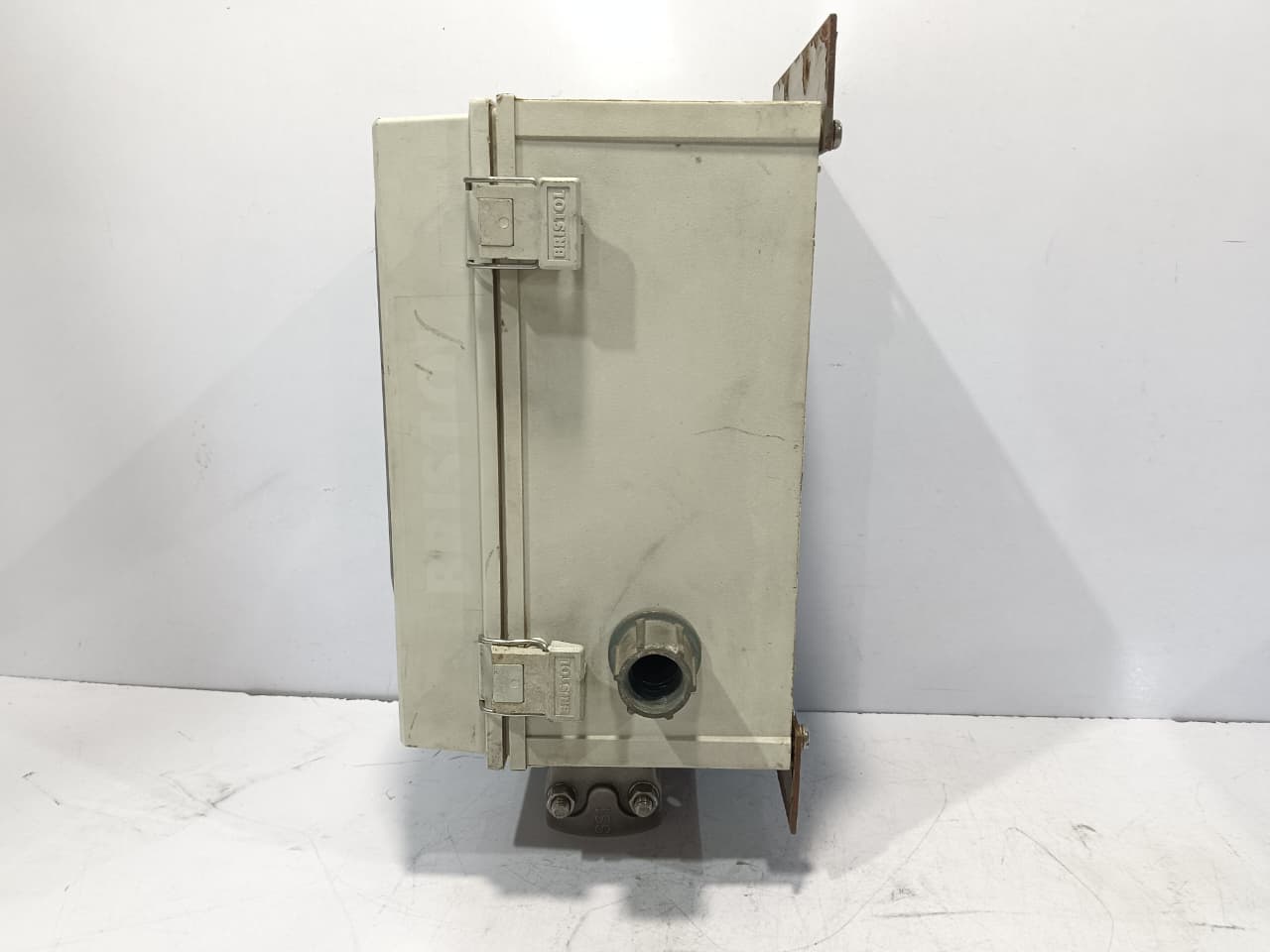

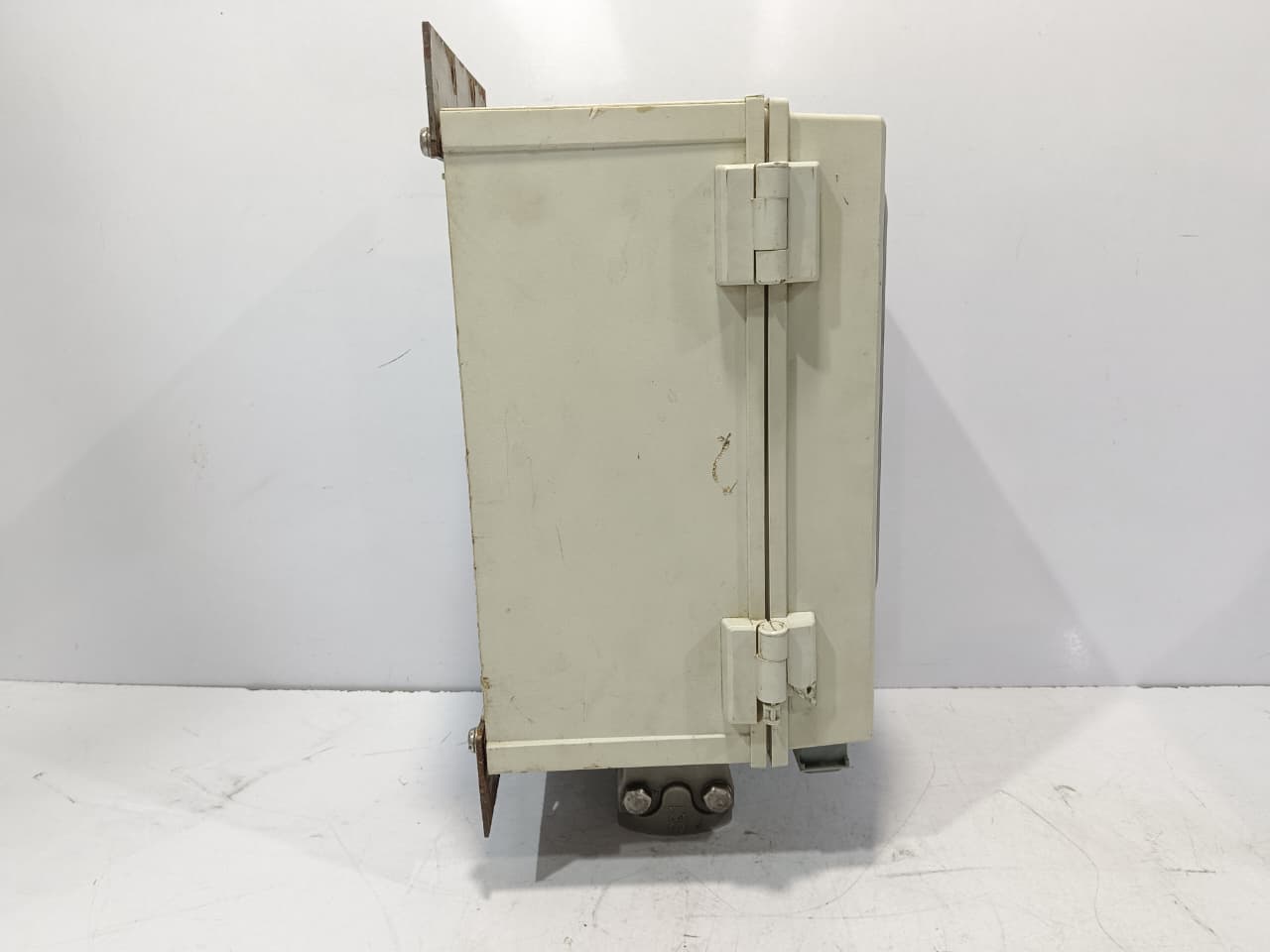

Enclosure & Ingress Protection: Weatherproof NEMA 4X / IP66 rated fiberglass-reinforced composite enclosure with dual quick-release locking latches

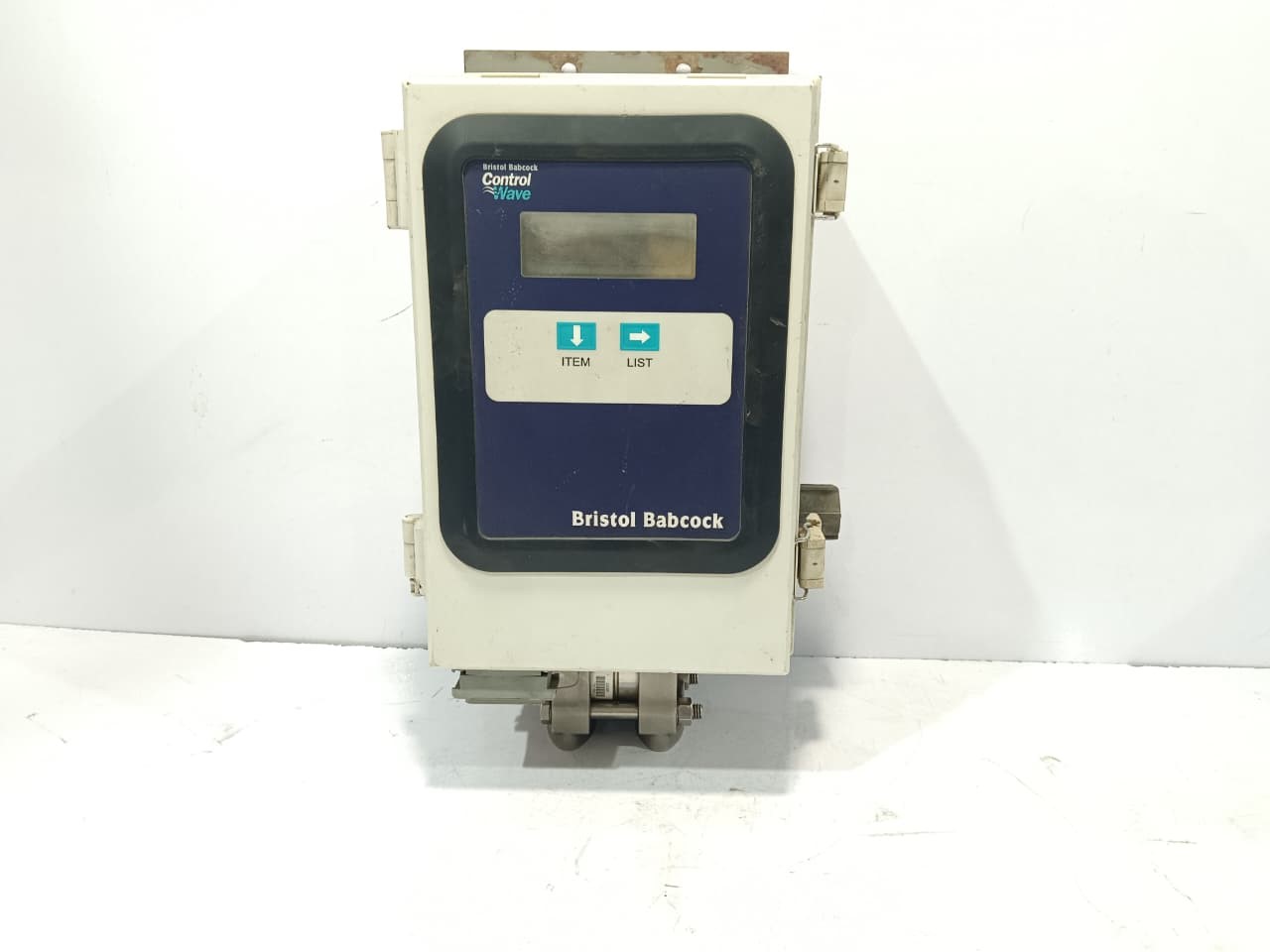

User Interface: Front panel 2-button navigation key membrane (Item, List) with LCD display window

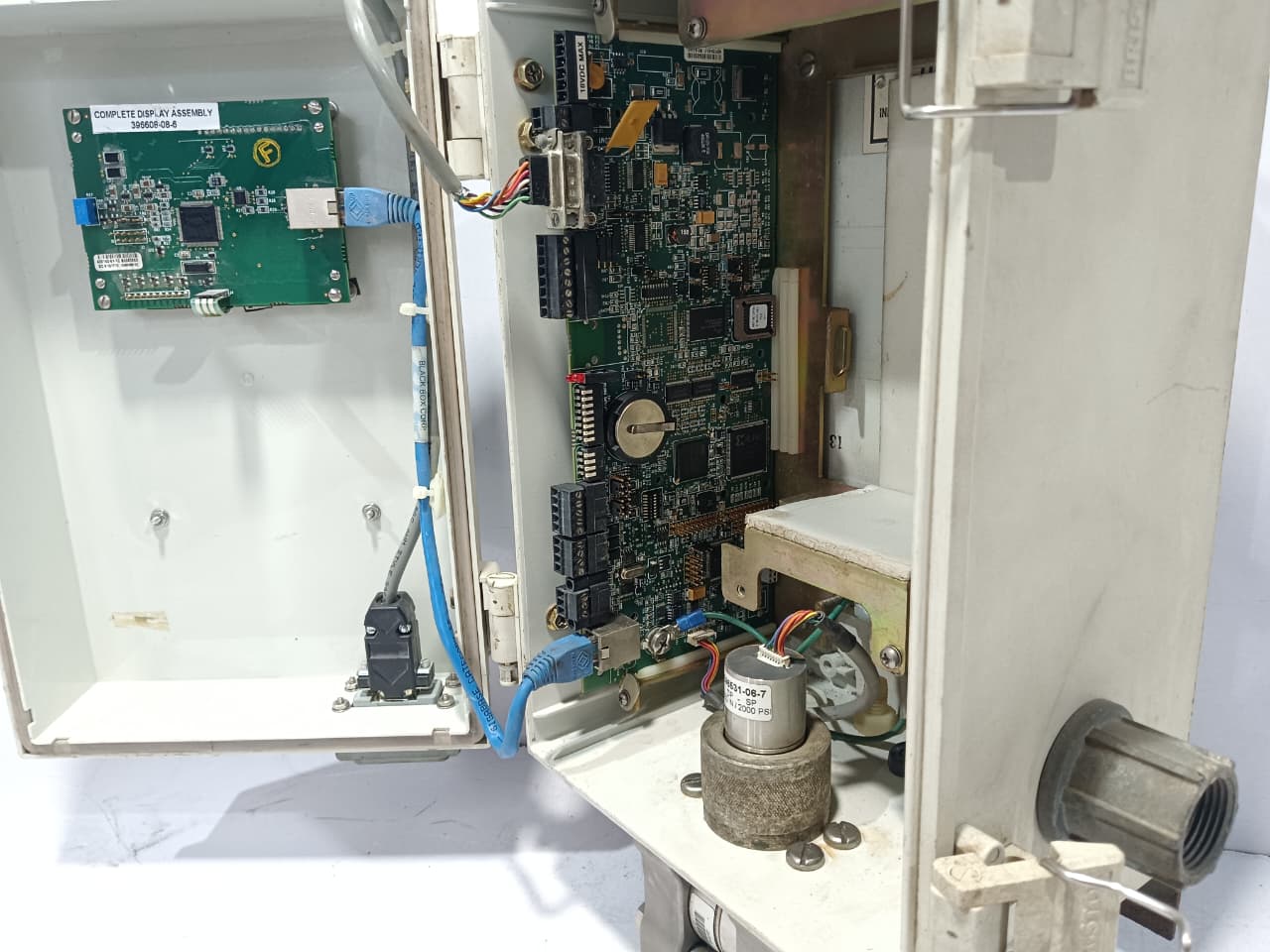

Internal Battery / Clock Backup: CR2032 lithium coin cell integrated on motherboard
Internal Connectivity & Ports: RJ45 communication port, RS-232/RS-485 serial terminal interfaces, multiple wiring terminal blocks

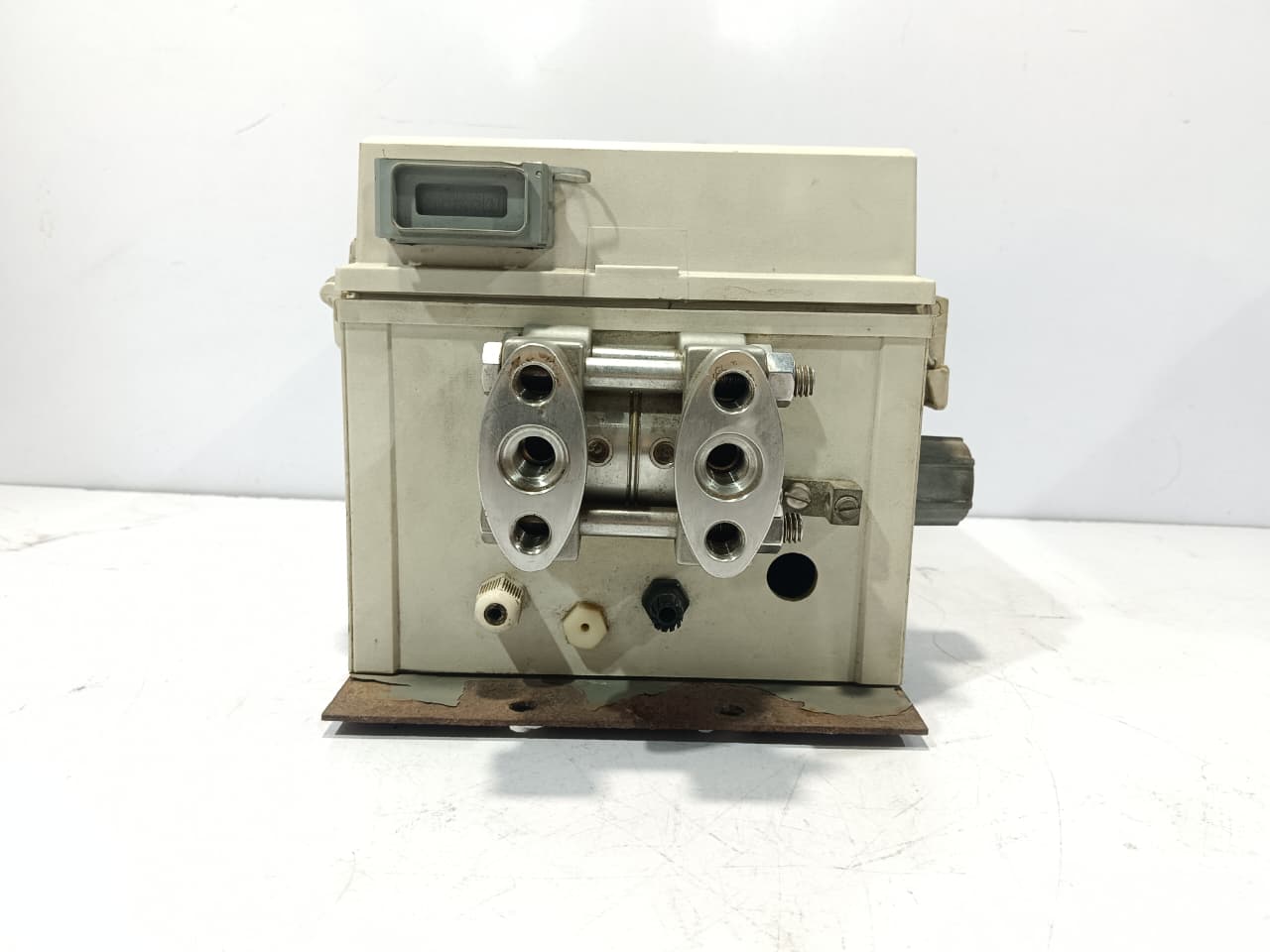

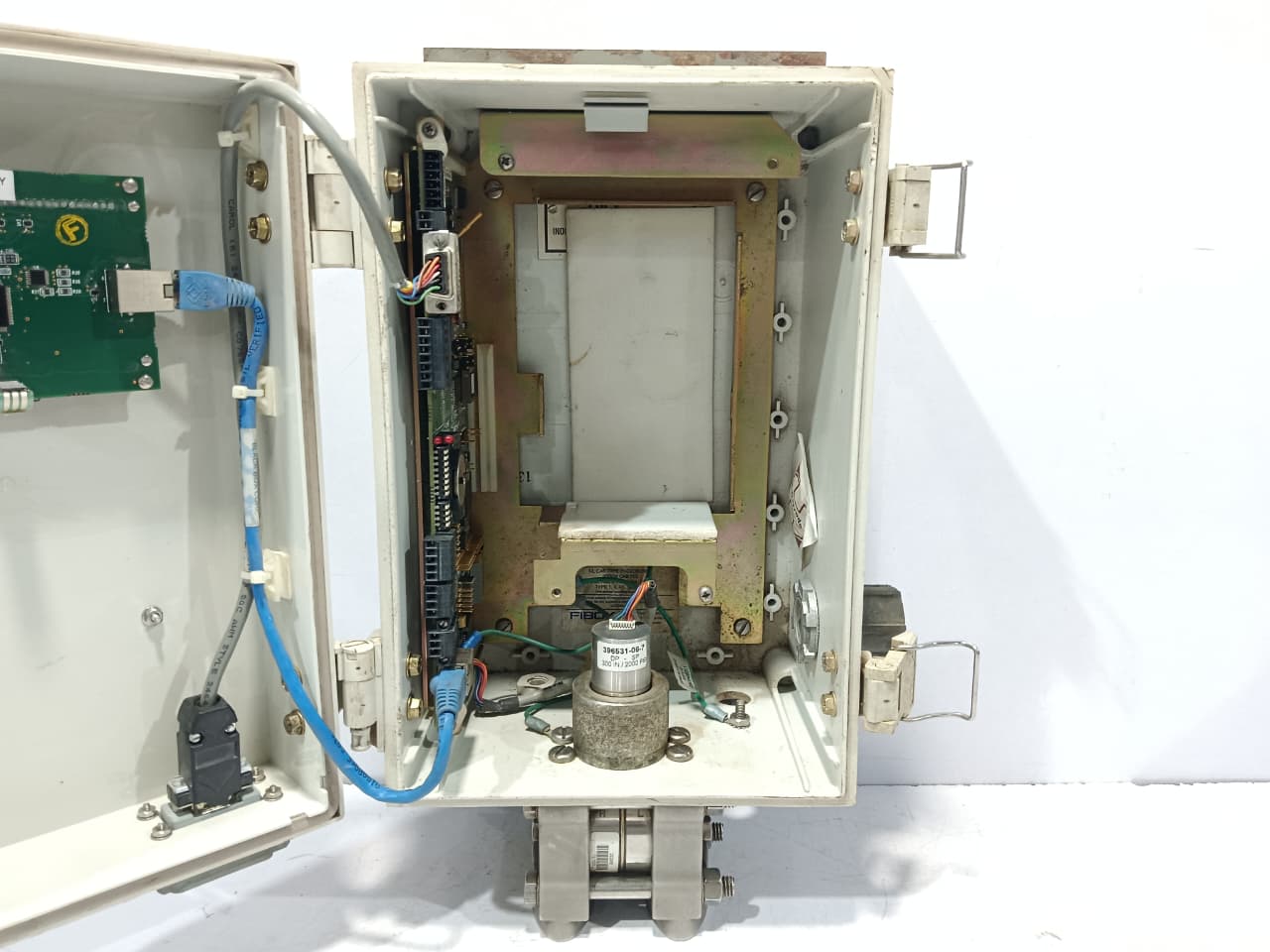

Features: Integrated multivariable sensor manifold, dual flange coplanar process connections, built-in bracket for internal battery pack

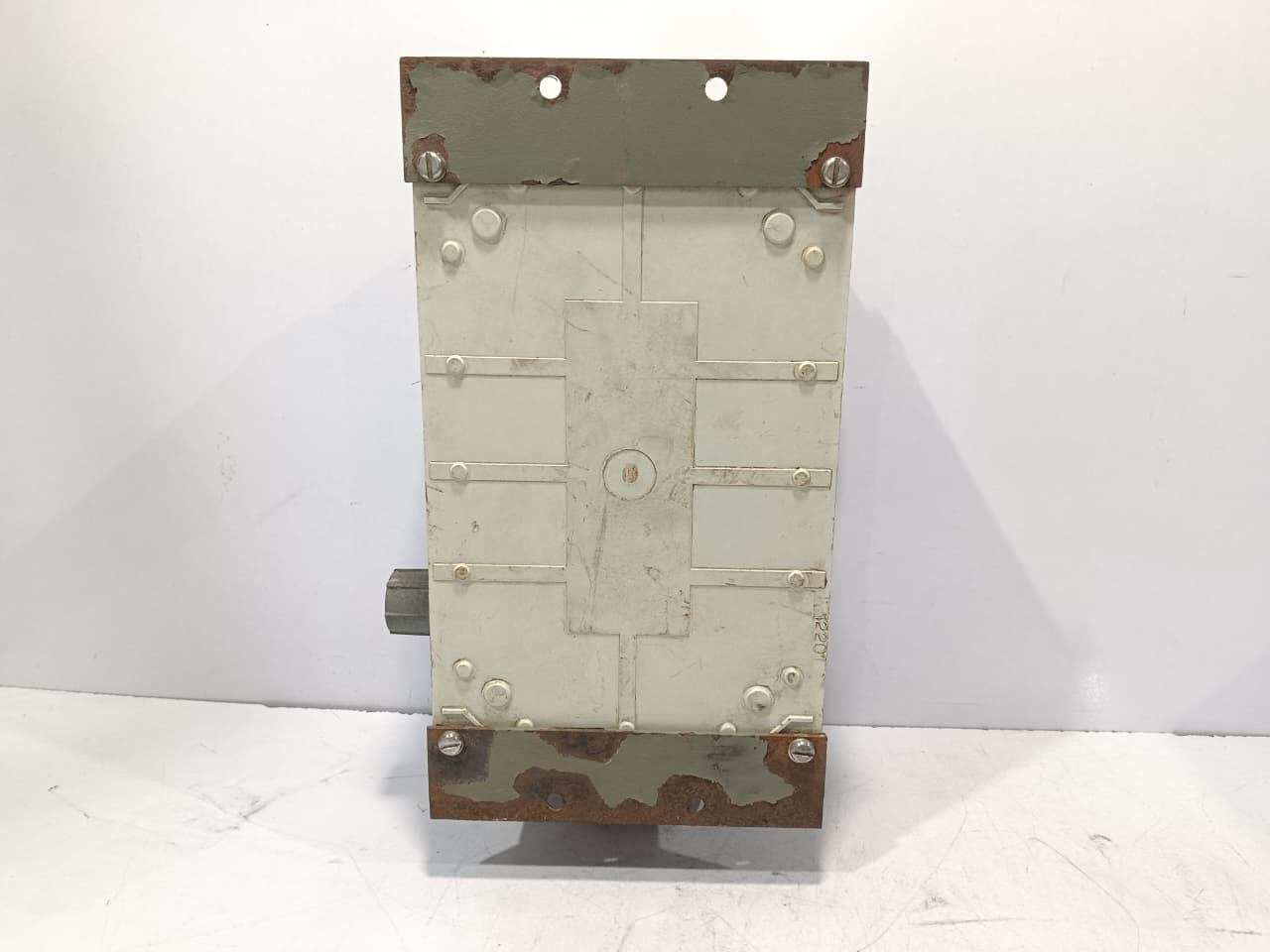

Mounting: Direct pipe manifold mounting / Wall bracket backplate mounting
Condition: Used
